£208.45
excl. VAT
£250.14 incl. VAT
£250.14
incl. VAT
£208.45 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

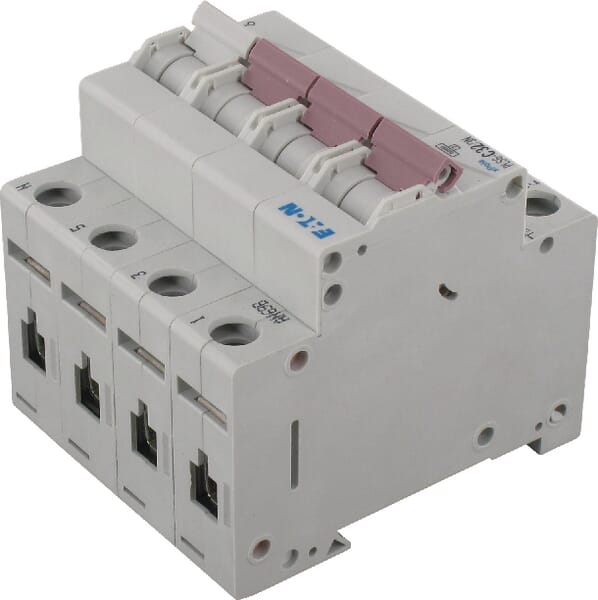

Product details
| Additional equipment possible | Yes |
|---|---|
| Ambient temperature during operating | -25.0 °C |
| Built-in depth | 70.5 mm |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Current limiting class | 3 |
| Explosion-proof | No |
| Flush-mounted installation | No |
| Frequency | 50-60 Hz |
| Insulation class | 20 |
| Manufacturer Product ID | 243021 |
| Number of poles | 4 |
| Number of protected poles | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Power loss | 11.8 W |
| Rated current | 32 A |
| Rated impulse withstand voltage Uimp | 4 V |
| Rated insulation voltage Ui | 440 V |
| Rated short-circuit breaking capacityat 230 V | 0 kA |
| Rated short-circuit breaking capacityat 400 V | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated voltage | 400 V |
| Release characteristic | C |
| Technical info | The Xpole circuit breakers from Moeller Electric program consists of a number of different types of circuit-breakers:, PLS4 series: nominal switching capacity 4.5 kA (IEC / EN 60898) C characteristic,, PLN6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic,, PLS6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic, PLSM series: nominal switching capacity 10 kA (IEC / EN 60898) B, C and D characteristic,, PLHT series: nominal switching capacity to 25 kA (IEC / EN 60947-2) C and D characteristic., Obviously the above series is also a wide range of accessories available, such as auxiliary contacts |
| Unit | Each |
| Voltage type | AC |
| Width in number of modular spacings (mm) | 4 mm |
Logistics
| EAN | 4015082430214 |
|---|---|
| Unit of measure | EA |
| Weight | 454 g |
| Dimensions | 86 × 74 × 76 mm |
| Dangerous goods | No |
You might also like
Free shipping

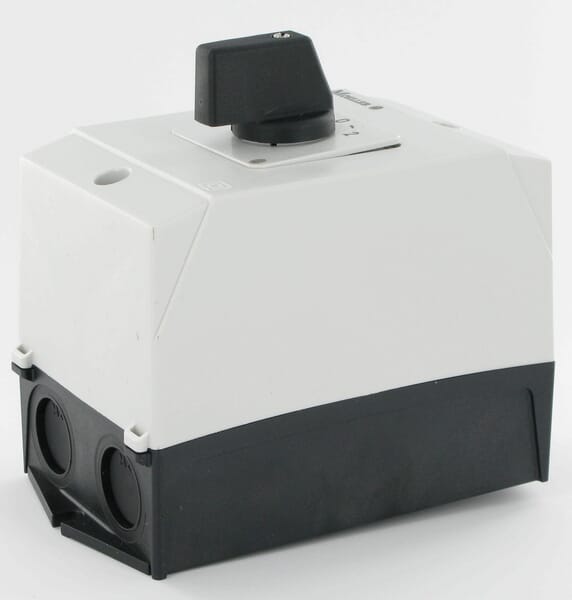

BPA000367154
Eaton Reverse switch 3P.20A.6.5kW T038228I1
£126.00 excl.
£151.20 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

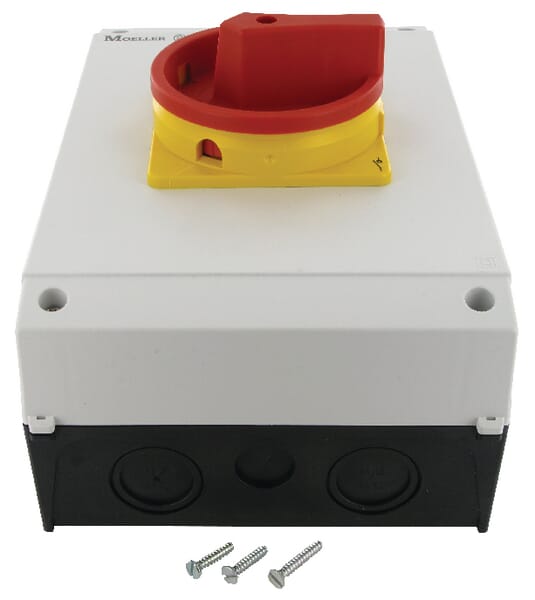

BPA000367149
Eaton Rotary switch, 20A 3P+N T028900I1SVB
£109.10 excl.
£130.92 incl.
In stock
Expected to ship on Friday 18 September

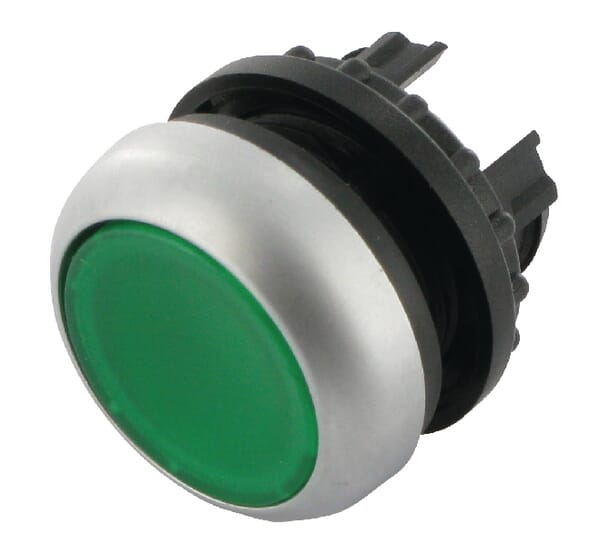

BPA000308241
Eaton Pushbutton green sp M22DRLG
£26.86 excl.
£32.23 incl.
In stock
Expected to ship on Monday 21 September

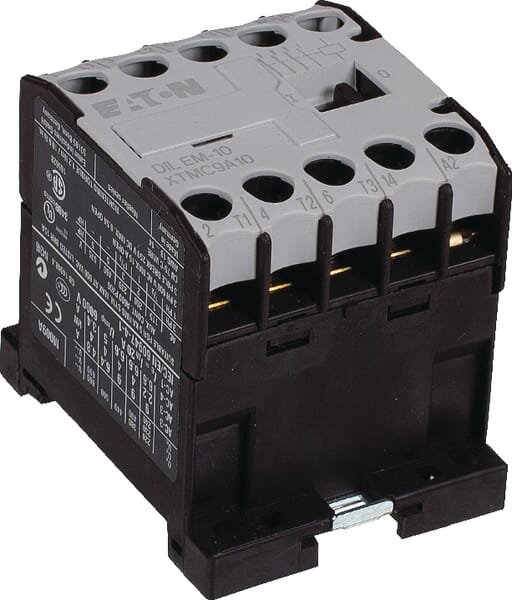

BPA000247567
Eaton Contactor DILEM10400V
£62.37 excl.
£74.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000308286
Eaton Compact indicator light red M22LCR
£26.17 excl.
£31.40 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

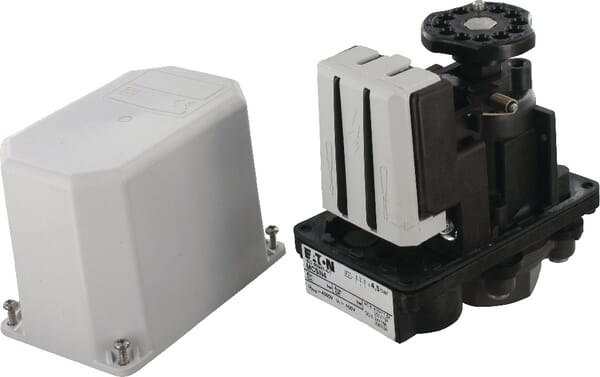

BPA000320838
