£57.00
excl. VAT
£68.40 incl. VAT
£68.40
incl. VAT
£57.00 excl. VAT
In stock
Expected to ship on Tuesday 22 September

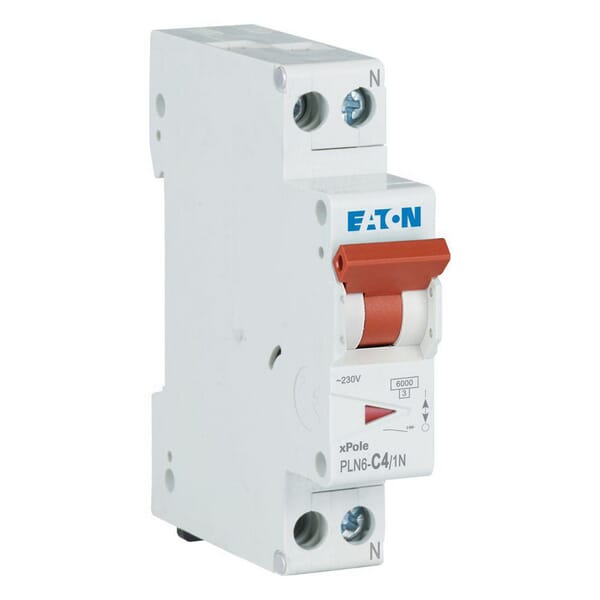

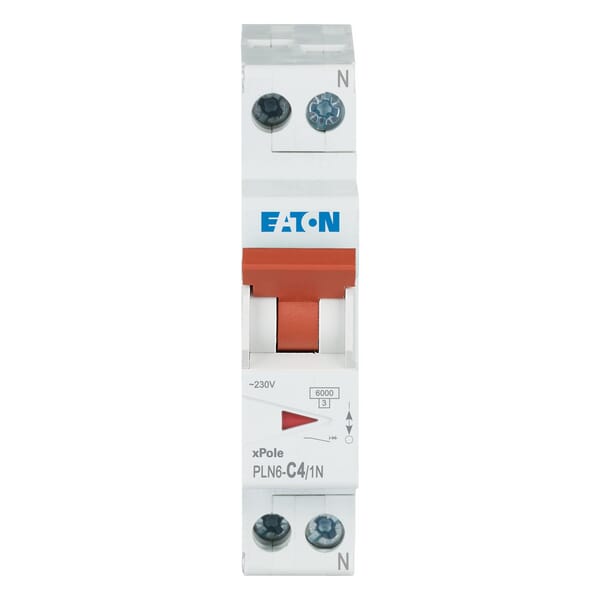

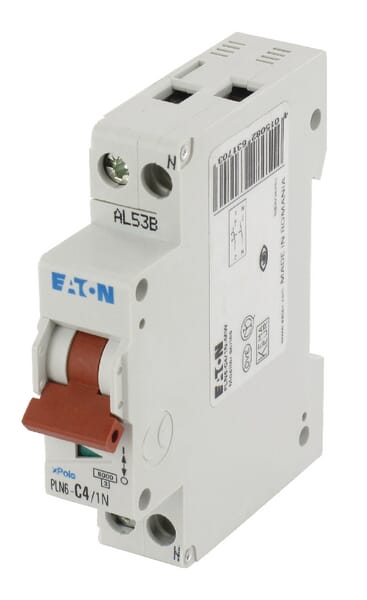

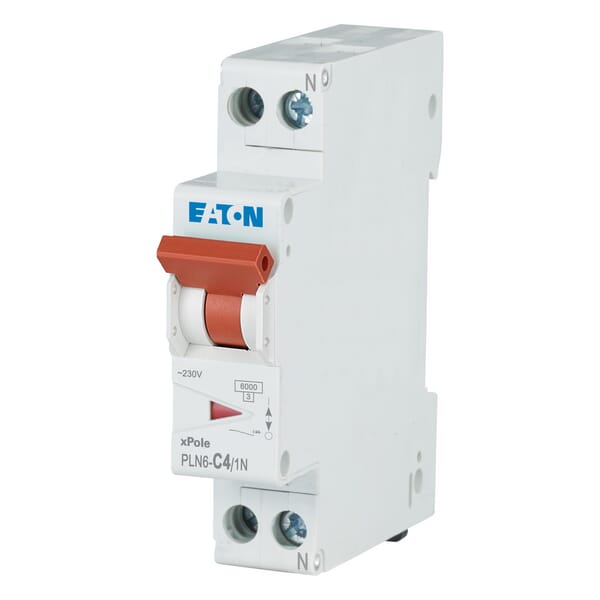

Product details
| Additional equipment possible | Yes |
|---|---|
| Ambient temperature during operating | -25.0 °C |
| Built-in depth | 70.5 mm |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Current limiting class | 3 |
| Explosion-proof | No |
| Flush-mounted installation | No |
| Frequency | 50-60 Hz |
| Insulation class | 20 |
| Manufacturer Product ID | 263170 |
| Number of poles | 2 |
| Number of protected poles | 1 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Power loss | 1.4 W |
| Rated current | 4 A |
| Rated impulse withstand voltage Uimp | 4 V |
| Rated insulation voltage Ui | 440 V |
| Rated short-circuit breaking capacityat 230 V | 0 kA |
| Rated short-circuit breaking capacityat 400 V | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated voltage | 230 V |
| Release characteristic | C |
| Technical info | The Xpole circuit breakers from Moeller Electric program consists of a number of different types of circuit-breakers:, PLS4 series: nominal switching capacity 4.5 kA (IEC / EN 60898) C characteristic,, PLN6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic,, PLS6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic, PLSM series: nominal switching capacity 10 kA (IEC / EN 60898) B, C and D characteristic,, PLHT series: nominal switching capacity to 25 kA (IEC / EN 60947-2) C and D characteristic., Obviously the above series is also a wide range of accessories available, such as auxiliary contacts |
| Unit | Each |
| Voltage type | AC |
| Width in number of modular spacings (mm) | 1 mm |
Logistics
| EAN | 4015082631703 |
|---|---|
| Unit of measure | EA |
| Weight | 114 g |
| Dimensions | 85 × 68 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000308432

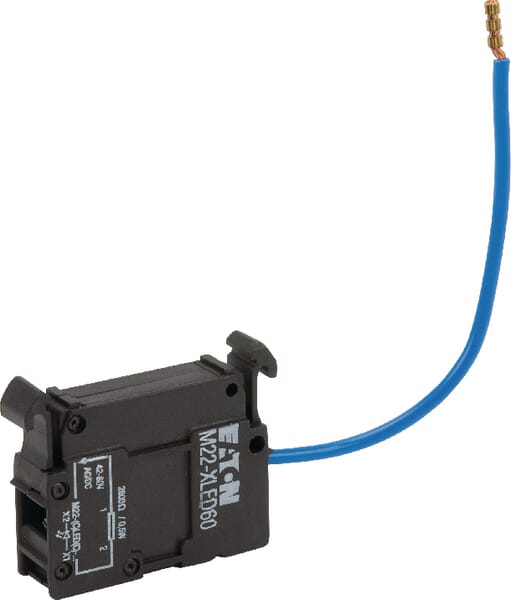

Eaton LED series resistor element M22XLED60
£14.42 excl.
£17.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000308327

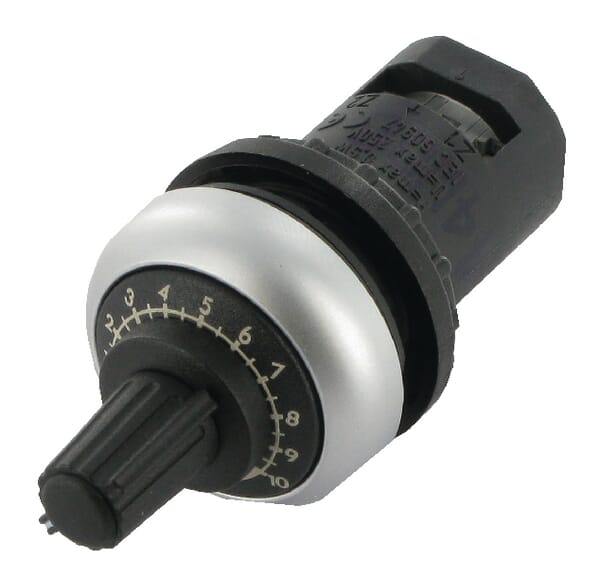

Eaton Potentiometer 10k M22R10K
£65.07 excl.
£78.08 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000308337

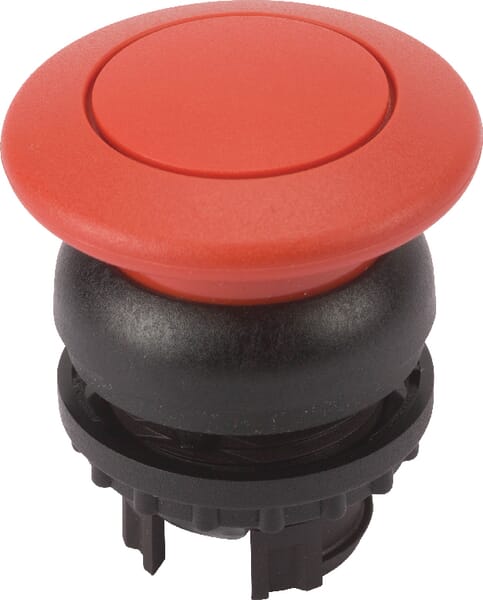

Eaton Mushroom actuator red M22SDPR
£15.01 excl.
£18.01 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000367135

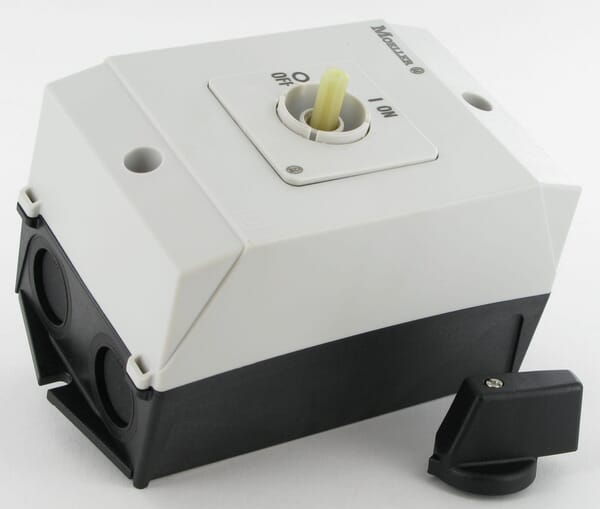

Eaton Rotary switch 3P, 20-A T021I1
£83.18 excl.
£99.82 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000250239
Eaton Softstart stop 3kW 24AC/DC DS7340SX007N0N
£363.82 excl.
£436.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000308382

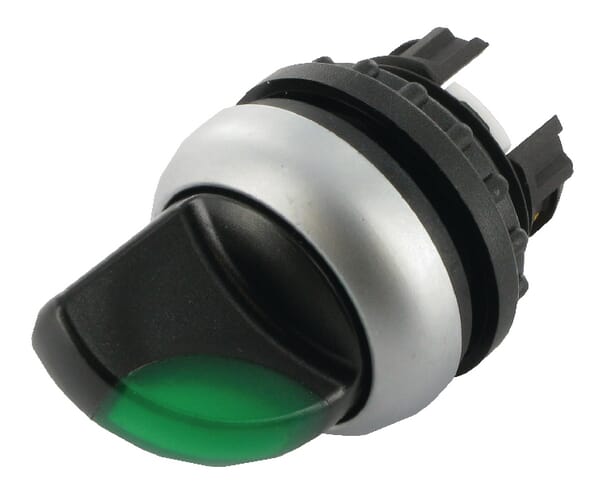

Eaton Selector switch green M22WRLK3G
