Product details
| Application range | WIRA push-in couplings are used for installation of plastic tubes in air brake systems and associated equipment on commercial vehicles, For plastic tubes to DIN 73378, DIN74324, SAE J 844 and J 1394 |
|---|---|
| Benefits | No tools are necessary for assembling the plastic tubes, Instead you just push the tube into the coupling - ready, The connections will seal immediately and permanently |
| Connection 1, thread diameter | M14 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 2, type | Hose end |
| Details | Developed from the most common connections |
| DPipe diameter | 10 mm |
| EConnection 2, centre to end distance | 19.5 mm |

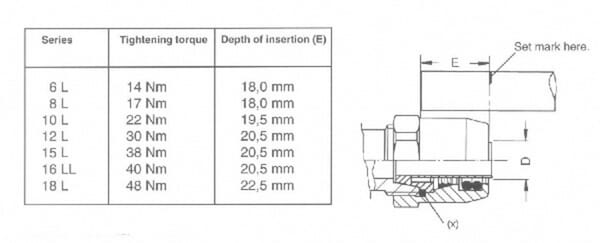

| Max. tightening torque | 22 N·m |
| Shape | Elbow |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 88 g |
| Dimensions | 49 × 43 × 19 mm |
| Dangerous goods | No |
