£296.69
excl. VAT
£356.03 incl. VAT
£356.03
incl. VAT
£296.69 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | For heat exchange between oil and cooling air in hydraulic systems, Improves heat exchange between oil and environment |
|---|---|
| Connection thread diameter | 1 Inch |
| Consists of | Aluminium cooler, Support, Fan/electric motor, voltage depends on version, 40-48ºC temperature switch, Plug for connecting temperature switch/DC motor |
| Cooling medium flow type | Suction |
| Depth | 157 mm |
| Fan outside diameter | 225 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 64 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Max. working flow | 70 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 72 dB(A) |
| Nominal voltage | 12 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Properties | Coolers are equipped with thermostats (38-50ºC) as standard, Motor is switched by relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 6.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7200 g |
| Dimensions | 360 × 340 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327452

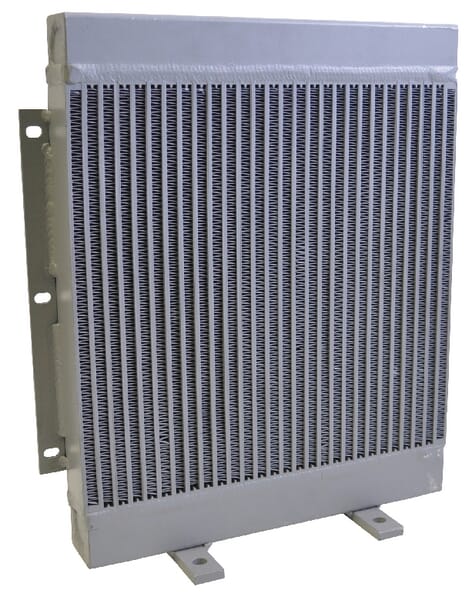

Emmegi Radiatorr HPA-12 OK9HPA12150
£938.40 excl.
£1,126.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327411

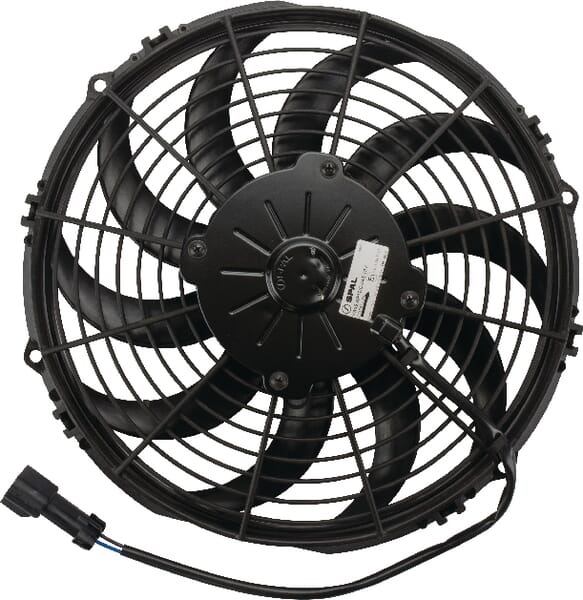

Emmegi Fan with motor 2024-12VDC 280mm OK9202431NB
£138.28 excl.
£165.94 incl.
In stock
Expected to ship on Monday 21 September
BPA000327423

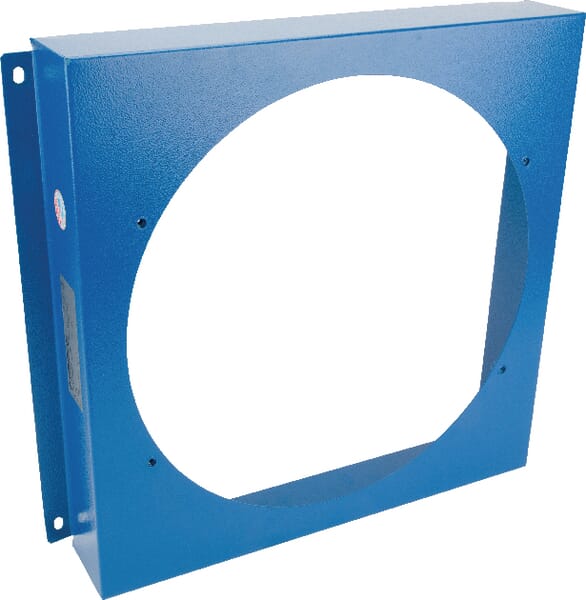

Emmegi Suport frame GR-2 Hydr Motor OK9204065
£32.27 excl.
£38.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327398

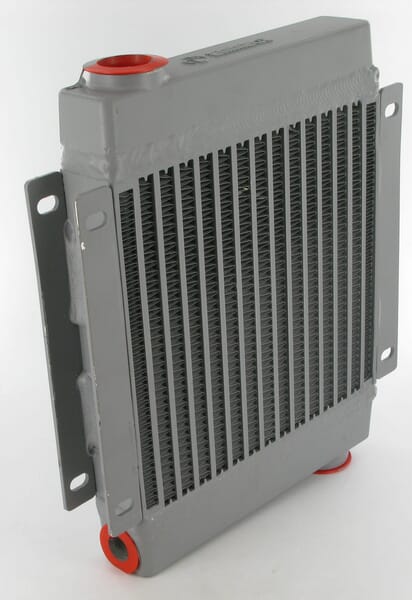

Emmegi Radiator 2015 K OK92015150
£374.23 excl.
£449.08 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000327465

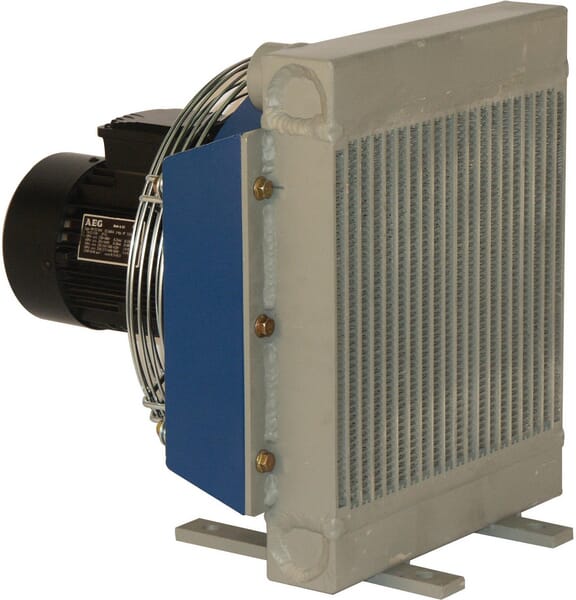

Emmegi Oil-cooler (400V) 50-38'C HPA-12-03-2-01 OKHPA1203201
£1,369.92 excl.
£1,643.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327460
Emmegi Seal Lid TBV MG-130 OK9MG13004
£19.04 excl.
£22.85 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000204719
Kramp Countersunk screw DIN965 M4x16 steel zinc-plated 4.8 965416P100
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000060286

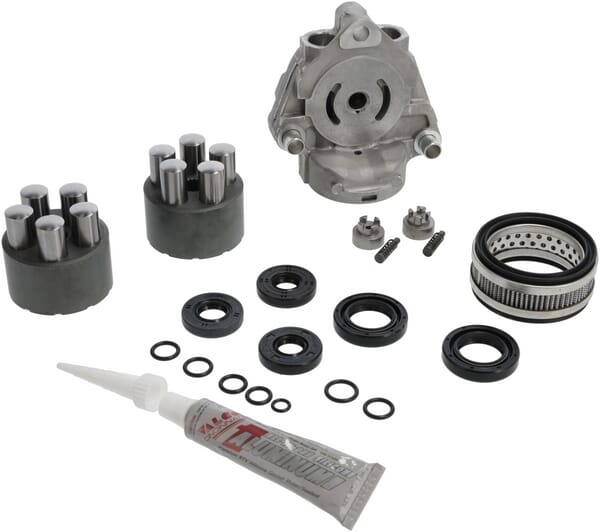

Tuff Torq Repair kit (without oil with sealant) 19215499291
