£816.60
excl. VAT
£979.92 incl. VAT
£979.92
incl. VAT
£816.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| AHeight | 409 mm |
|---|---|
| Amperage | 20 A |
| BWidth | 465 mm |
| Bypass | Yes |
| Connection thread diameter | 1 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 260 W |
| EDepth | 188 mm |
| Fan outside diameter | 305 mm |
| Includes | Aluminium radiator, Electric motor with impeller, Temperature switch 48-60ºC, Bypass, Plug connection, Without mounting base |
| Insulation class | 68 |
| LMounting holes distance | 310 mm |
| Long description | Oil coolers are used to improve heat exchange between oil and environment. The 2MV coolers are fitted with a thermostat as well as a bypass as standard. |
| Material | Plastic, Aluminium |
| Max. working flow | 130 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 76 dB(A) |
| Nominal voltage | 12 V |
| Product details | Outstanding value for money, With thermostat and bypass, Highly suitable for mobile applications. |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 48-60 |
| Unit | Each |
| Weight | 10.5 kg |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK90519630

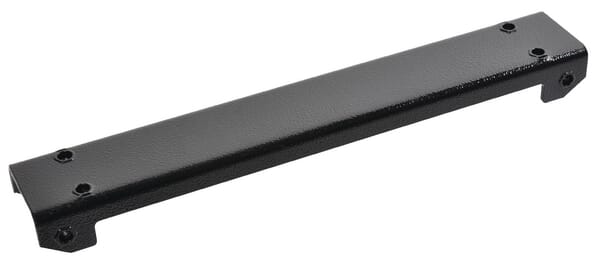

Emmegi Assembly foot MV3 OK90519630
£44.01 excl.
£52.81 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 500 × 480 × 260 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327416
Emmegi Cooling fan cap 2030 OK92030100
£100.30 excl.
£120.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327392
Emmegi Assembly foot MV3 OK90519630
£44.01 excl.
£52.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327462
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327341

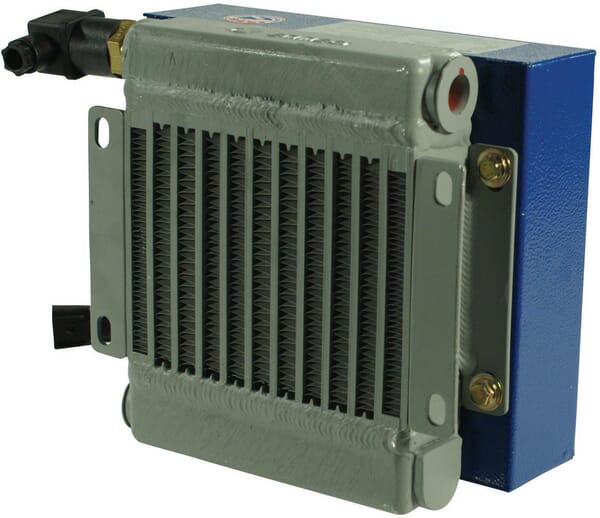

Emmegi Oil-cooler (230V) 38-50'C 2010K-01-2-01 OK201022001
£483.74 excl.
£580.49 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327454

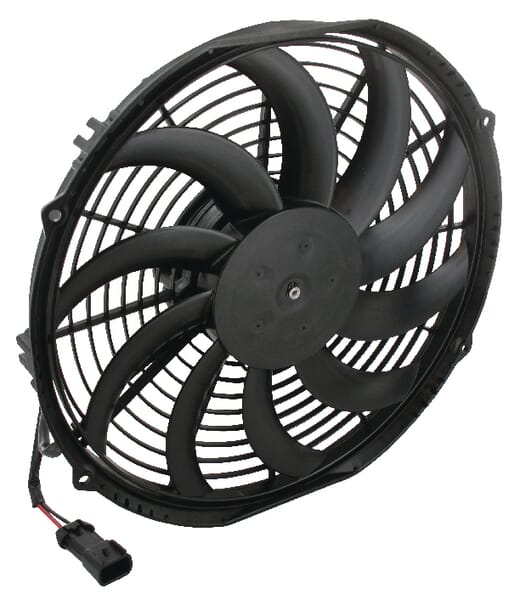

Emmegi Cooling fan HPA12-24VDC OK9HPA1235
