£1,620.76
excl. VAT
£1,944.91 incl. VAT
£1,944.91
incl. VAT
£1,620.76 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| AHeight | 515 mm |
|---|---|
| Amperage | 26.2 A |
| BWidth | 610 mm |
| Bypass | Yes |
| Connection thread diameter | 1-1/4 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 340 W |
| EDepth | 240 mm |
| Fan outside diameter | 385 mm |
| Includes | Aluminium radiator, Electric motor with impeller, Temperature switch 48-60ºC, Bypass, Plug connection, Without mounting base |
| Insulation class | 68 |

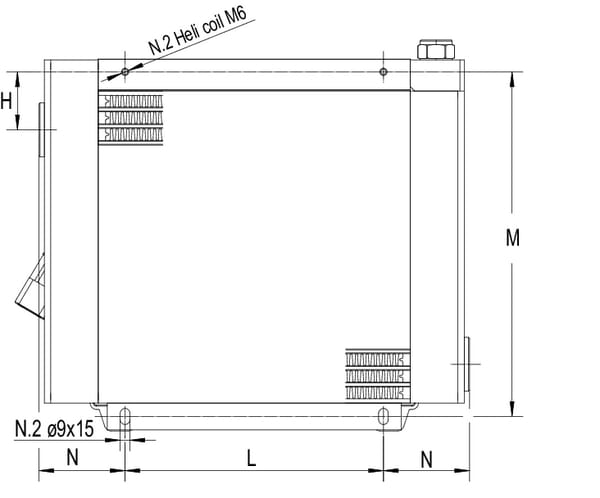

| LMounting holes distance | 400 mm |
| Long description | Oil coolers are used to improve heat exchange between oil and environment. The 2MV coolers are fitted with a thermostat as well as a bypass as standard. |
| Material | Plastic, Aluminium |
| Max. working flow | 140 l/min |
| Max. working pressure | 20 BAR |
| Nominal voltage | 12 V |
| Product details | Outstanding value for money, With thermostat and bypass, Highly suitable for mobile applications. |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 48-60 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25000 g |
| Dimensions | 500 × 500 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327478
Emmegi Oil cooler MG-155-1730-4 OKMG1551730
£4,047.83 excl.
£4,857.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327414
Emmegi Electric fan with motor 220V 250mm OK9202440
£271.93 excl.
£326.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327343
Emmegi Oil-cooler (400V) 38-50'C 2015K-03-2-01 OK2015380VAC
£465.24 excl.
£558.29 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327471
Emmegi Oil-cooler (400V) 50-38'C HPA-30-03-2-01 OKHPA3003201
£2,086.02 excl.
£2,503.22 incl.
In stock
Expected to ship on Monday 21 September
BPA000327406

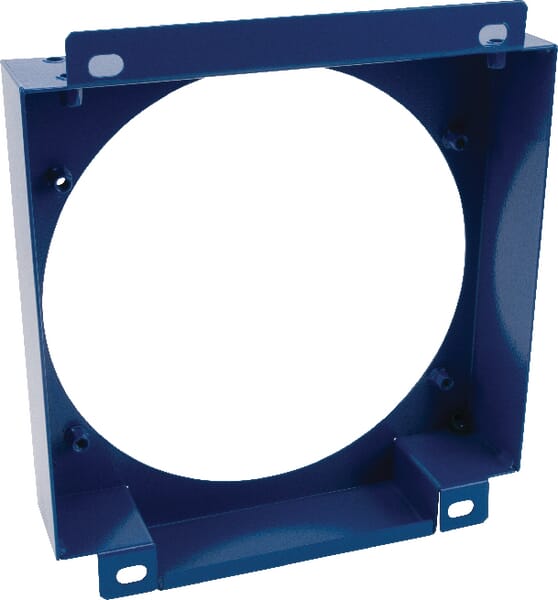

Emmegi Fan surround 2015-20 DC new OK9201595N
