£385.18
excl. VAT
£462.22 incl. VAT
£462.22
incl. VAT
£385.18 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | For heat exchange between oil and cooling air in hydraulic systems, Improves heat exchange between oil and environment |
|---|---|
| Connection thread diameter | 1 Inch |
| Consists of | Aluminium cooler, Support, Fan/electric motor, voltage depends on version, 40-48ºC temperature switch, Plug for connecting temperature switch/DC motor |
| Cooling medium flow type | Suction |
| Depth | 157 mm |
| Fan outside diameter | 225 mm |
| Includes | Aluminium radiator, Support, Impeller / electric motor, voltage depends on version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 64 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Max. working flow | 70 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 73 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Properties | Coolers are equipped with thermostats (38-50ºC) as standard, Motor is switched by relay |
| Pros | Compact build-in, Complete unit, Increased efficiency, Long component service life |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 6.5 kg |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK93038
Emmegi Temperature Switch 28-40°C Oil-cooler OK93038
£75.05 excl.
£90.06 incl.
OK95060
Emmegi Temperature Switch 48-60°C Oil-cooler OK95060
£58.10 excl.
£69.72 incl.
OK96070

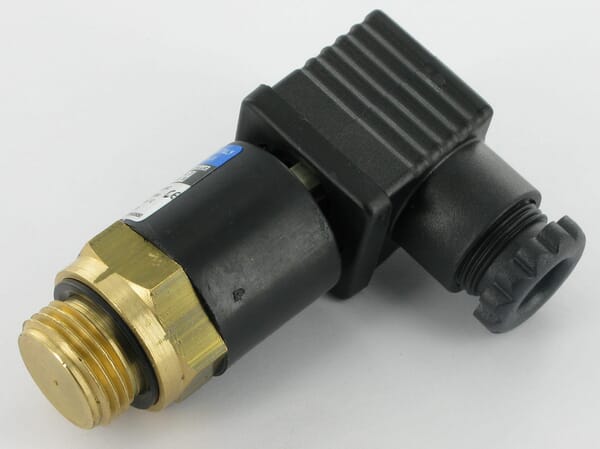

Emmegi Temperature Switch 58-70°C Oil-cooler OK96070
£74.53 excl.
£89.44 incl.
OK97080
Emmegi Temperature Switch 68-80°C Oil-cooler OK97080
£74.53 excl.
£89.44 incl.

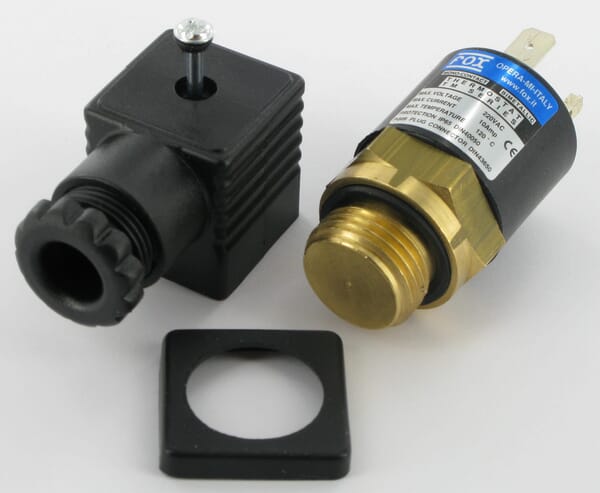

OK98090
Emmegi Temperature Switch 78-90°C Oil-cooler OK98090
£74.53 excl.
£89.44 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6578 g |
| Dimensions | 360 × 325 × 190 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327458

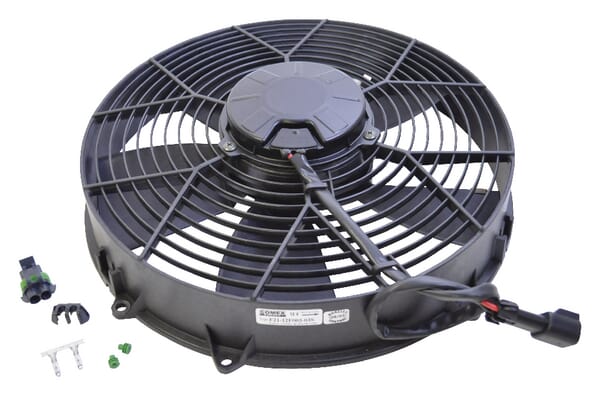

Emmegi MOTOR/WAAIER/ROOST HPA36-12VDC OK9HPA3630
£407.33 excl.
£488.80 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000327358

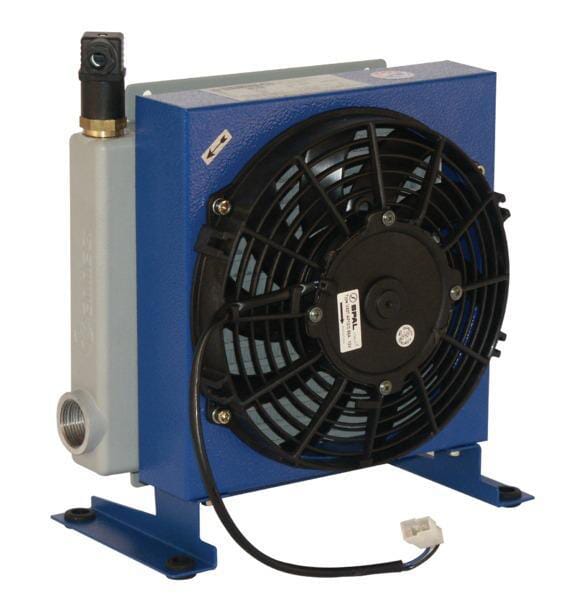

Emmegi Oil-cooler (12V) 38-50' C 2024K-12-2-01 OK2024K12201
£416.99 excl.
£500.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

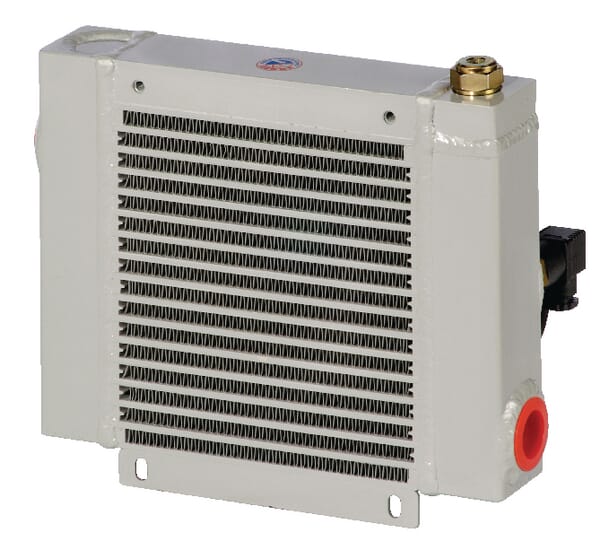

BPA000327349
Emmegi Oil-cooler by-pass 12V 48-60˚C OK2015KBV12301
£541.08 excl.
£649.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

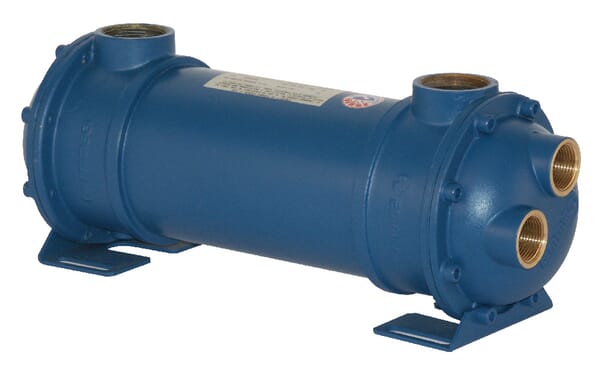

BPA000327483
Emmegi Oil cooler MG- 80- 560-4 OKMG800560
£692.85 excl.
£831.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

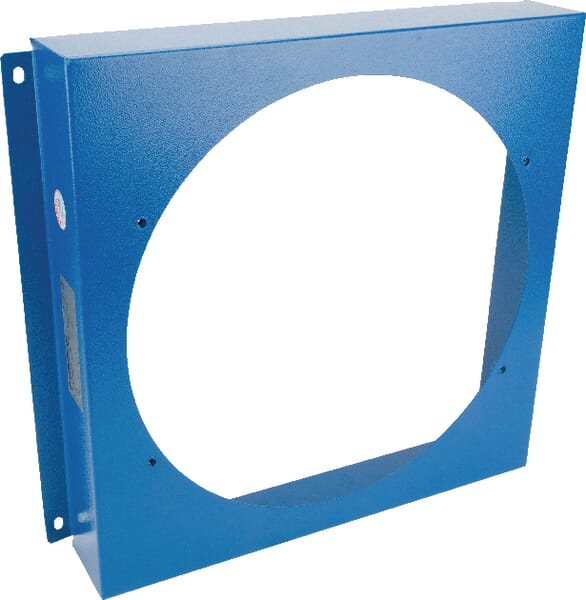

BPA000327426
