£620.76
excl. VAT
£744.91 incl. VAT
£744.91
incl. VAT
£620.76 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

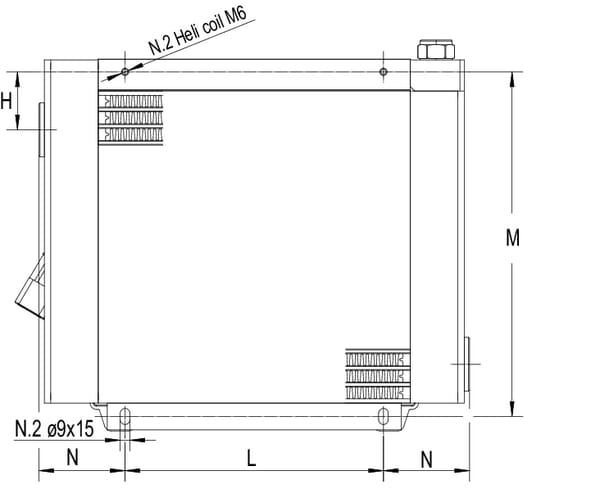

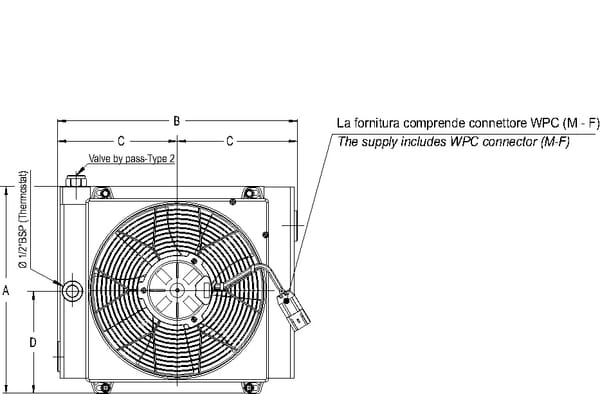

| AHeight | 255 mm |
|---|---|
| Amperage | 4 A |
| BWidth | 325 mm |
| Bypass | Yes |
| Connection thread diameter | 1 Inch |
| Cooling medium flow type | Suction |
| Drive motor power | 100 W |

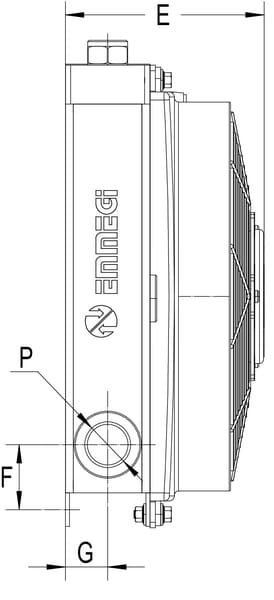

| EDepth | 146 mm |
| Fan outside diameter | 190 mm |

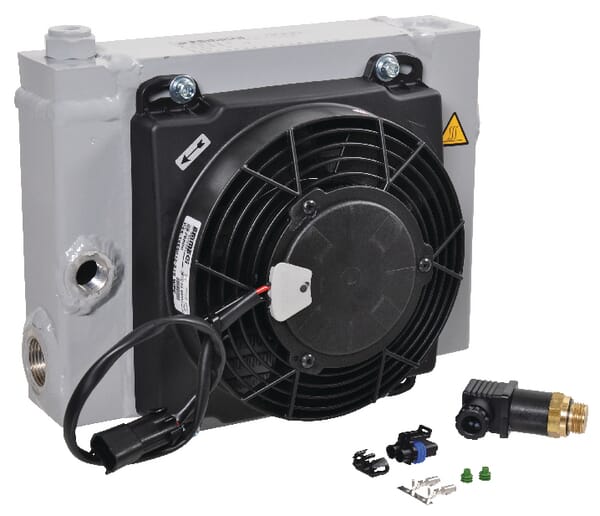

| Includes | Aluminium radiator, Electric motor with impeller, Temperature switch 48-60ºC, Bypass, Plug connection, Without mounting base |
| Insulation class | 68 |
| LMounting holes distance | 150 mm |
| Long description | Oil coolers are used to improve heat exchange between oil and environment. The 2MV coolers are fitted with a thermostat as well as a bypass as standard. |
| Material | Plastic, Aluminium |
| Max. working flow | 95 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 74 dB(A) |
| Nominal voltage | 24 V |
| Product details | Outstanding value for money, With thermostat and bypass, Highly suitable for mobile applications. |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 48 - 60 °C thermostat. |
| Thermostat working temperature | 48-60 |
| Unit | Each |
| Weight | 5.3 kg |
Compatible accessories
Parts and components that work with this product.
4RA965400071
Hella Relay 4RA965400071
£11.71 excl.
£14.05 incl.
OK90519610

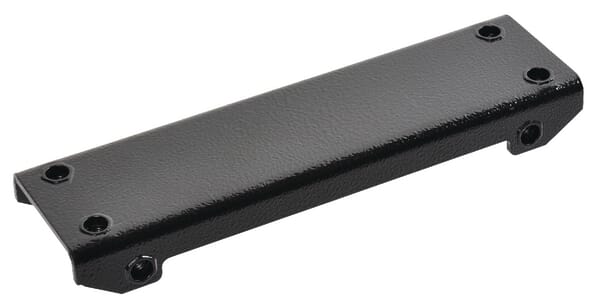

Emmegi Assembly foot MV1 OK90519610
£52.69 excl.
£63.23 incl.
OK9NTCTEMPS
Emmegi NTC temperature sensor 1/2" BSP OK9NTCTEMPS
£43.68 excl.
£52.42 incl.
OK9SSSCRF
Emmegi Soft start en speed control with reverse (max 25A) OK9SSSCRF
£300.84 excl.
£361.01 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5521 g |
| Dimensions | 346 × 362 × 201 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327408
Emmegi Cooler by-pass 2020 OK92020150BV
£574.59 excl.
£689.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327419

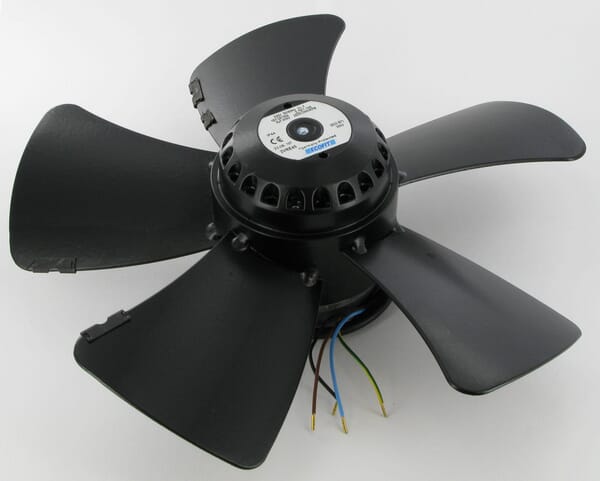

Emmegi Electric fan with motor 220V 300mm OK9203040
£343.66 excl.
£412.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327468

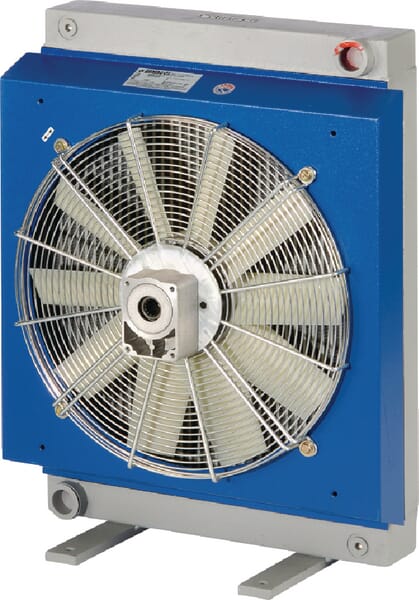

Emmegi Oil-cooler (Gr2) HPA-18-56-2-01 OKHPA1856201
£1,550.42 excl.
£1,860.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327411
Emmegi Fan with motor 2024-12VDC 280mm OK9202431NB
£138.28 excl.
£165.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000327404

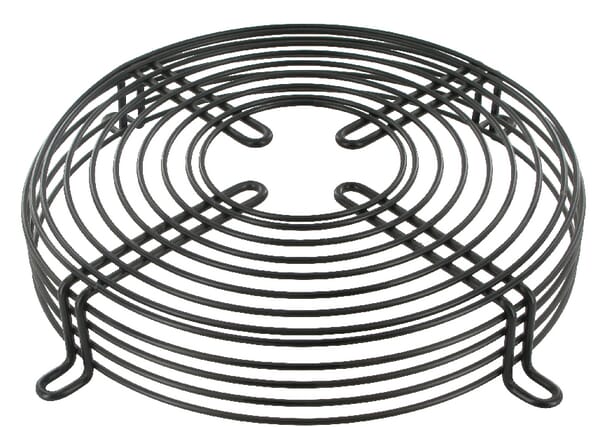

Emmegi Fan cover 2015-20 AC OK9201580
£22.42 excl.
£26.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327360
Emmegi Oil-Cooler 2024K Gr.2 OK2024K56201
£775.66 excl.
£930.79 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000295153
Hünersdorff Discharge pipe for chain oil JK819801
£15.51 excl.
£18.61 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000119478
Kramp Circlip external 48x1.8mm DIN471 Stainless steel 47148RVS
£3.08 excl.
£3.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000232392

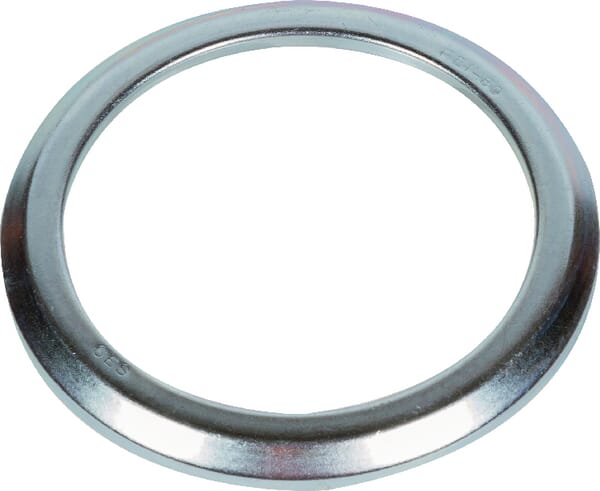

Kramp Alphaseal RCL 80x102x5,5 AS8010255RCLP001
£9.20 excl.
£11.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000237072

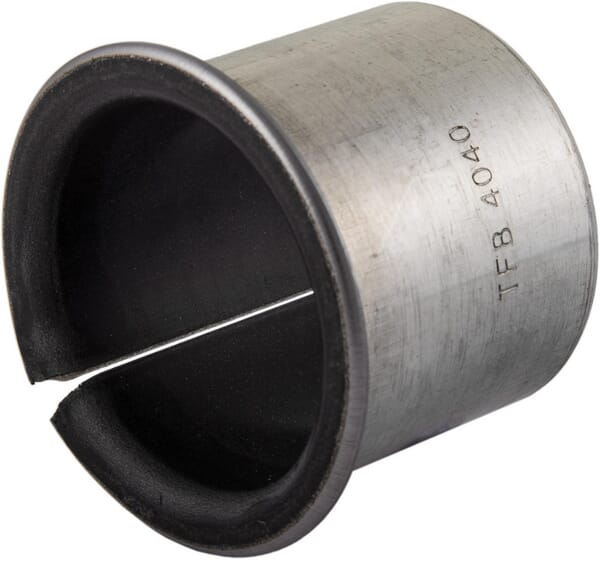

GLT/LHG Bearing bush 40x44x26mm BB40445326PTFE
