£889.87
excl. VAT
£1,067.84 incl. VAT
£1,067.84
incl. VAT
£889.87 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

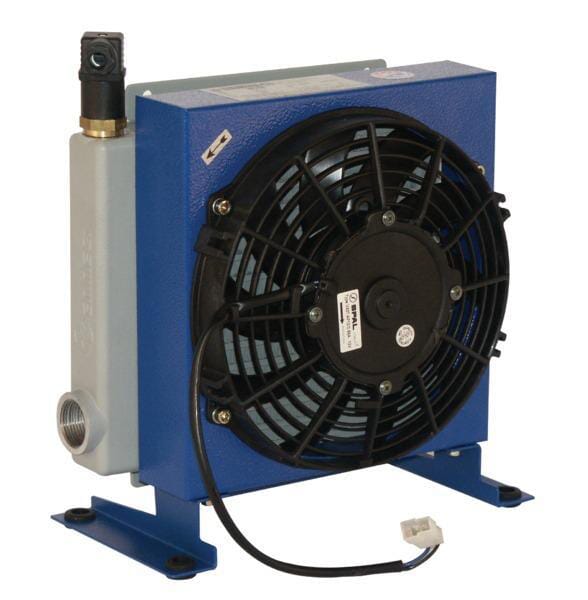

Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 211 mm |
| Fan outside diameter | 305 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 65 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |
| Max. working flow | 130 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 68 dB(A) |
| Nominal voltage | 24 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 14 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16330 g |
| Dimensions | 519 × 490 × 518 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327424

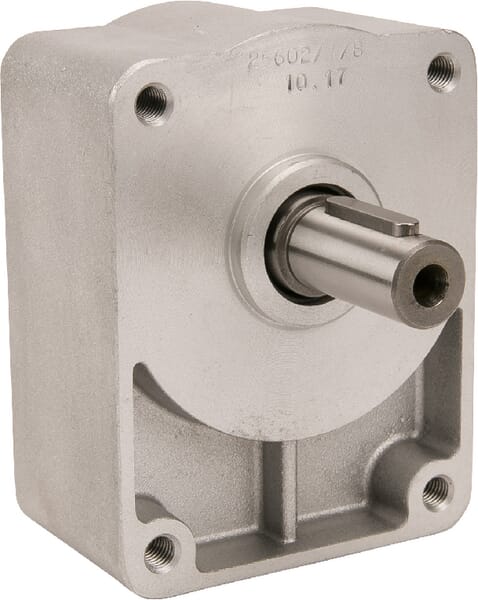

Emmegi Support GR-2 Hydr Motor OK 20 OK9204070
£138.88 excl.
£166.66 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

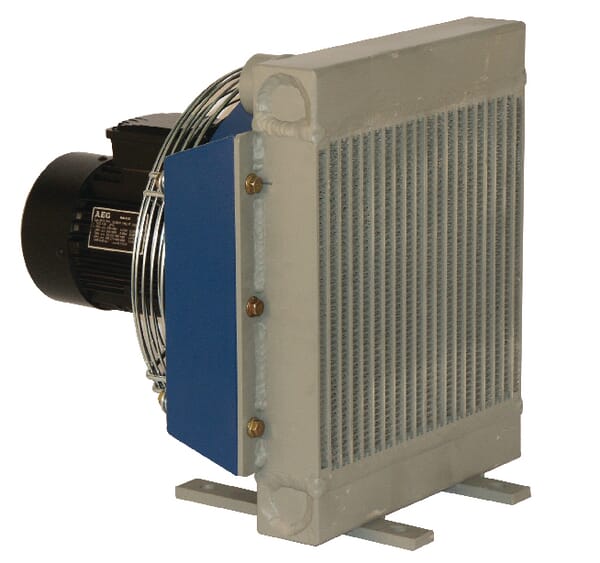

BPA000327470
Emmegi Oil-cooler (400V) 50-38'C HPA-24-03-2-01 OKHPA2403201
£1,418.96 excl.
£1,702.75 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327473

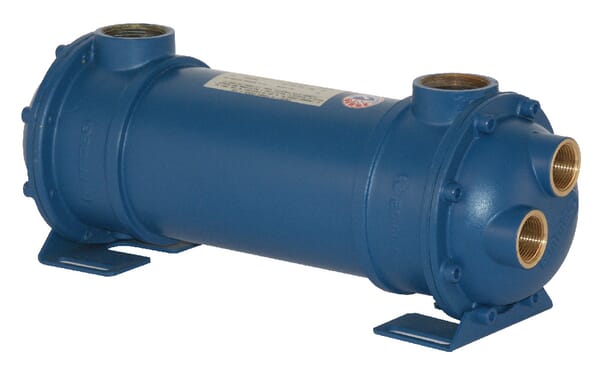

Emmegi Oil cooler MG-130- 285-4 OKMG1300285
£1,200.91 excl.
£1,441.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327459

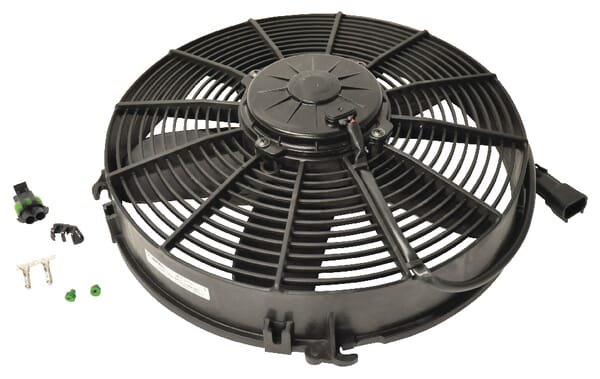

Emmegi Impeller with grill and 24VDC motor OK9HPA3635
£413.74 excl.
£496.49 incl.
Backorder available
Usually ships within 3–8 weeks

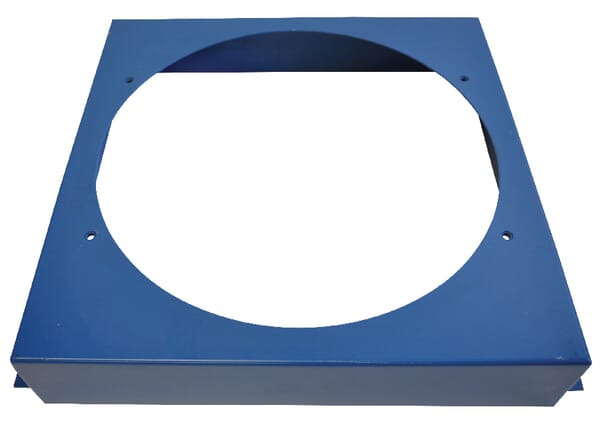

BPA000327417
Emmegi Cooling fan cap 2030 DC OK920301002
£99.09 excl.
£118.91 incl.
In stock
Expected to ship on Monday 21 September
BPA000327420
Emmegi Cooling fan 2030 AC OK9203085
£48.13 excl.
£57.76 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000328291
Kramp O-ring 329.57x5.33mm 75 shore Viton OR32957533VP001
£35.89 excl.
£43.07 incl.
Backorder available
Usually ships within 3–8 weeks

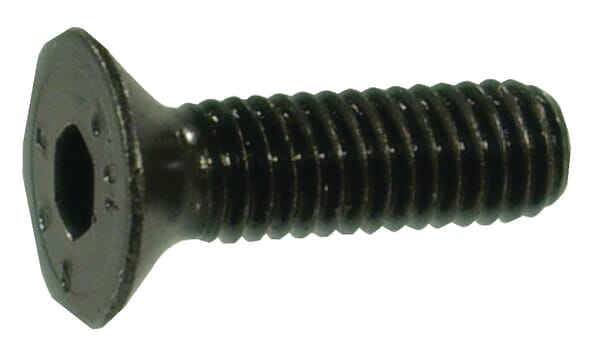

BPA000179341
