Product details

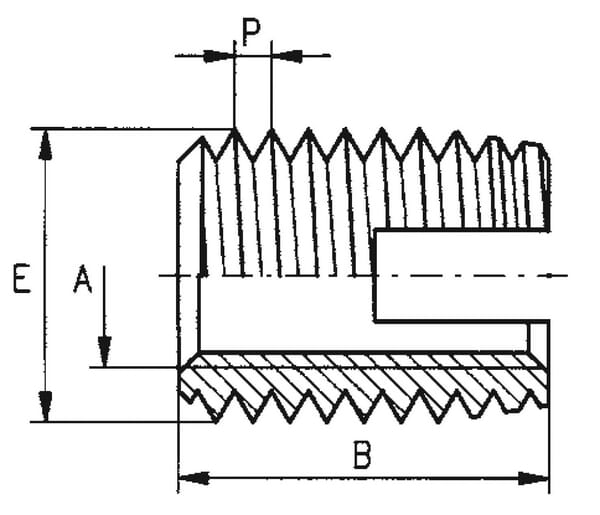

| BTotal length | 24 mm |
|---|---|
| Drill depth | 29 mm |
| Inside thread diameter | M18 |
| Inside thread pitch | 2.50 mm |

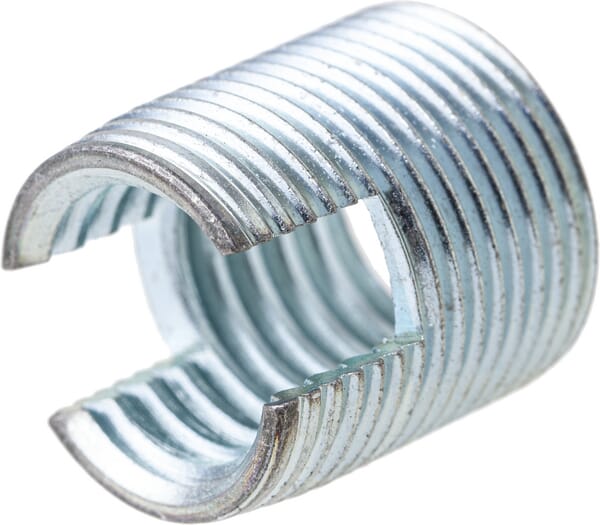

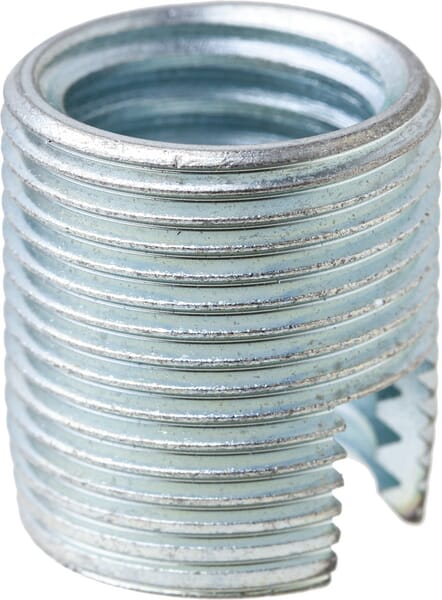

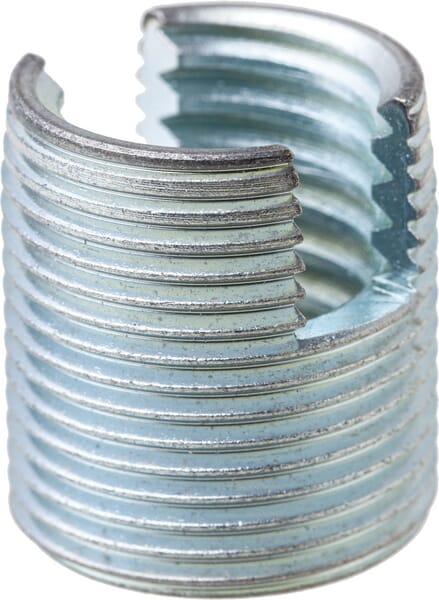

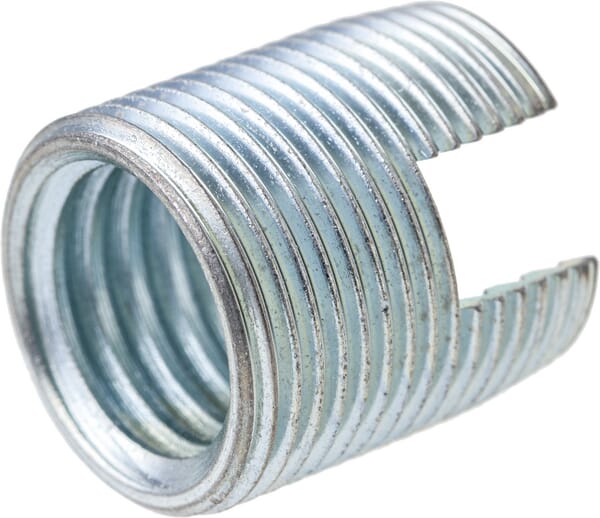

| Long description | Ensat® 302 is a self-cutting threaded bush with cutting slot. It only requires a drilled hole, pre-cutting is not necessary. This self-cutting threaded bush can cut its own thread with the special external outer thread and cutting slot. For the production of heavy duty, wear-resistant and anti-vibration screw connections in low-strength materials |
| Material | Steel |
| Outside thread diameter | M22 |
| Outside thread pitch | 1.50 mm |
| Product details | Self-cutting threaded bush with male and female thread and cut slot holes, Internal, standard metric female thread, External, special outer male thread, For metal, alloys, cast iron, brass, bronze and non-ferrous metal, For plastic and laminate, For hardwood |
| Pros | Abrasion- and vibration resistant screw connections, It only needs a drilled hole, pre-cutting is not required, Internal thread through the entire length |
| Surface treatment | Zinc-plated |
| Thread type | Metric |
| Unit | Each |
Logistics
| EAN | 8714723708014 |
|---|---|
| Unit of measure | EA |
| Weight | 21 g |
| Dimensions | 25 × 20 × 20 mm |
| Dangerous goods | No |
