£96.00
excl. VAT
£115.20 incl. VAT
£115.20
incl. VAT
£96.00 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

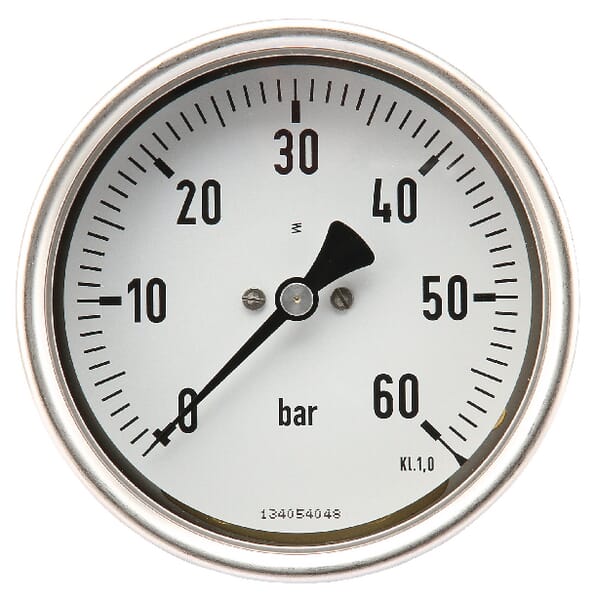

Product details
| Class | 1 |
|---|---|
| Connection material | Brass |
| Connection thread diameter | 1/2 Inch |
| Connection thread type | BSP |
| Filled | Yes |
| Filled with | Glycerine |
| Housing outside diameter | 100 mm |
| Indicator type | Analogue |
| Long description | These pressure gauges feature a glycerine filling to enhance their accuracy and durability. In environments with vibration, shock and pulsating pressure, this liquid filling will ensure stable pressure measurement and accurate readings. Available in different diameters and pressure ranges. |
| Material housing | Stainless steel |
| Material of glass | Plastic |
| Max. pressure | 60 BAR |
| Max. working temperature | 60 °C |
| Min. pressure | 0 BAR |
| Min. working temperature | 5 °C |
| Mounting type | Connection back |
| Outside diameter | 100 mm |
| Product category | Pressure gauge |
| Series | 7214 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
MAV10SR12
Voss Gauge Coupl F 10 SR 1/2 BSP MAV10SR12
£7.20 excl.
£8.64 incl.
MAV6SR12
Voss Gauge Coupl F 6 SR 1/2 BSP MAV6SR12
£7.05 excl.
£8.46 incl.
MAV8SR12

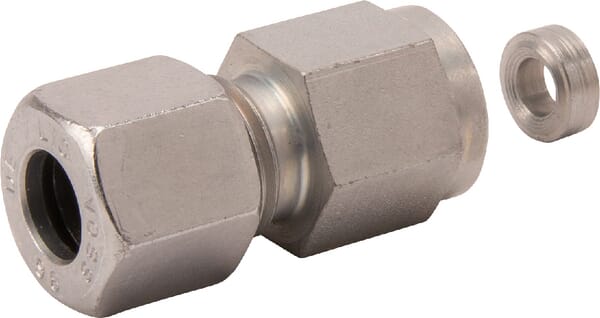

Voss Gauge Coupl F 8 SR 1/2 BSP MAV8SR12
£6.90 excl.
£8.28 incl.
MA2012
Spradow BulkHead gauge Female 1/2 BSP MA2012
£9.29 excl.
£11.15 incl.
EMASD12SR12
Voss Gauge Coupl F pipe 12-SR-1/2" EMASD12SR12
£11.53 excl.
£13.84 incl.
MAV12SR12
Voss Gauge Coupl F 12 SR 1/2 BSP MAV12SR12
£7.36 excl.
£8.83 incl.
MPSW1000
Spradow Measuring TL=1,000 M16x2 hex (2x) MPSW1000
£14.25 excl.
£17.10 incl.
MPSP1000
Spradow Measuring Hose TL=1,000 M16x2 x 6mm MPSP1000
£12.63 excl.
£15.16 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 890 g |
| Dimensions | 141 × 140 × 106 mm |
| Dangerous goods | No |
You might also like
BPA000070427
ET Pressure gauge diameter 63mm 0-16bar 1/4"JATO 228016
£23.64 excl.
£28.37 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000314517
ET Pressure gauge diameter 63 0-160 1/4" rear MA63160B04SSGF
£14.40 excl.
£17.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000314062
ET Pressure gauge diameter 50 0–1.6bar1/4" rear MA50016B04ST
£13.53 excl.
£16.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000313988

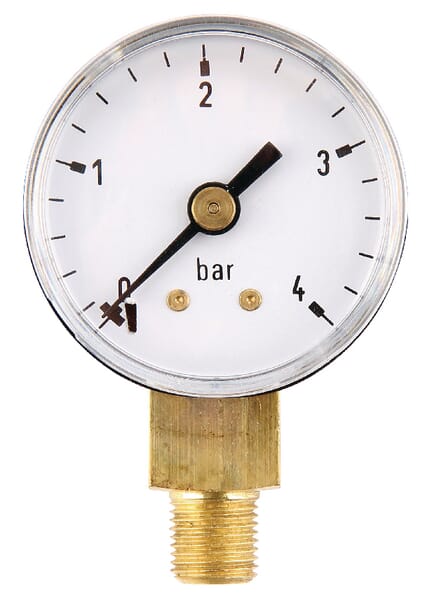

ET Pressure gauge diameter 40 0–4bar 1/8" bottom MA404L02ST
£9.99 excl.
£11.99 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000314528
ET Pressure gauge diameter 63 0–1bar 1/4" bottom MA631L04SSGF
£16.21 excl.
£19.45 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000313617
ET Pressure gauge diameter 100 0-4bar 1/2" MA1004L08SSGF
£60.90 excl.
£73.08 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000089977

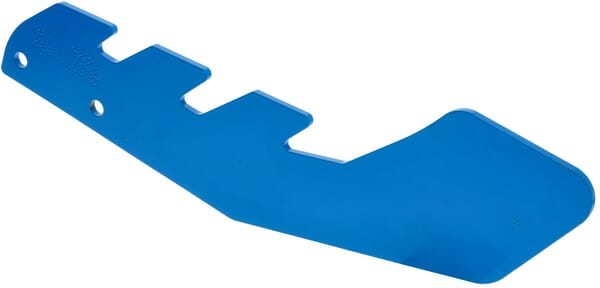

Lemken Levelling foot middle, 6x164x425 2xD11.5 33710032
