£279.42
excl. VAT
£335.30 incl. VAT
£335.30
incl. VAT
£279.42 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
About this product

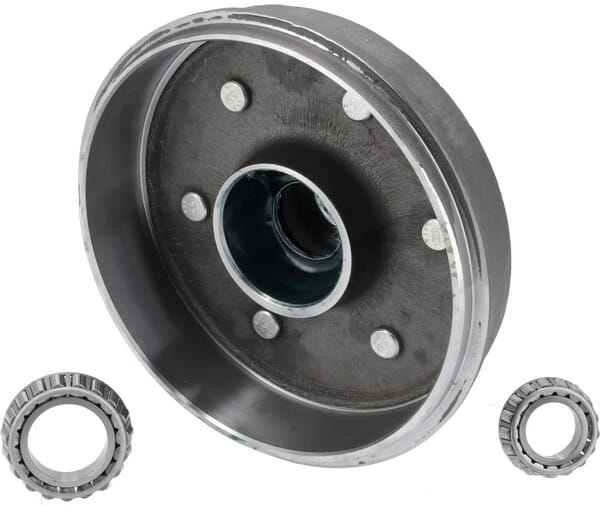

A complete hub repair kit for FAD agricultural trailer axles, specifically designed for models 30208 and 30211. The kit features a 160 mm wheel mounting centre hole diameter and 205 mm bolt circle diameter with 6 mounting holes of M18 thread. The internal brake drum diameter is 300 mm with brake shoes 60 mm wide. The hub assembly is 144 mm total width, with a 19 mm bore diameter and bearing mounting diameters of either 80 mm or 100 mm, using roller-type bearings. The kit is supplied as a single set and weighs approximately 17 kg. Dimensions are 340 mm length × 340 mm width × 290 mm height. This product is not classified as dangerous goods.
Product details

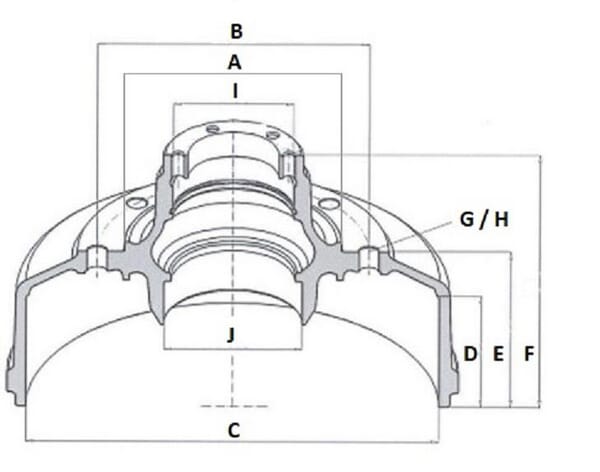

| AWheel mounting centre hole diameter | 160 mm |
|---|---|
| Bearing type | Roller |
| BWheel mounting holes/bolts circle diameter | 205 mm |
| CInside (brake) diameter | 300 mm |
| DBrake shoes/pads width | 60 mm |
| FTotal width | 144 mm |
| GNumber of mounting holes | 6 |
| hBore diameter | 19 mm |
| HMounting holes diameter | M18 |
| IBearing mounting diameter | 80 mm, 100 mm |
| Suitable for machine/vehicle model | 30208, 30211 |
| Unit | Set |
Logistics
| EAN | — |
|---|---|
| Unit of measure | SET |
| Weight | 17000 g |
| Dimensions | 340 × 340 × 290 mm |
| Dangerous goods | No |
You might also like
BPA000088016
FAD Brake shoe set 300x60 316A035C
£91.61 excl.
£109.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000087178

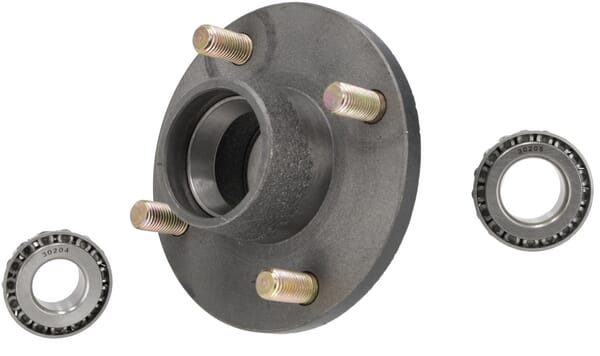

FAD Hub repair kit 93/140/5, M16x1.5 (30206/30209) 323400AX
£123.47 excl.
£148.16 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000093185
FAD Brake drum 350x60, (220/275/8) 90mm width, Bolt circle diameter 21.5 331F046
£129.23 excl.
£155.08 incl.
In stock
Expected to ship on Thursday 24 September
BPA000084714
FAD Wheel bolt M18x1.5x49 (10.9) 309F004
£3.21 excl.
£3.85 incl.
In stock
Expected to ship on Thursday 24 September
BPA000084545

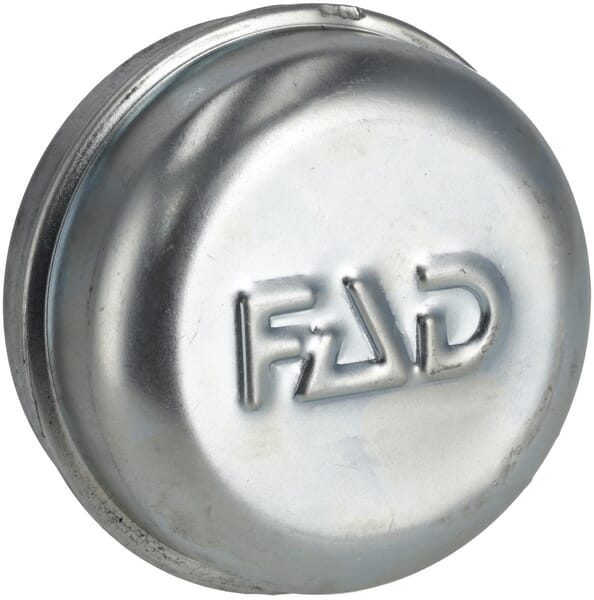

FAD Hub cap ∅52.3mm for bearing 30205 307F044
