About this product

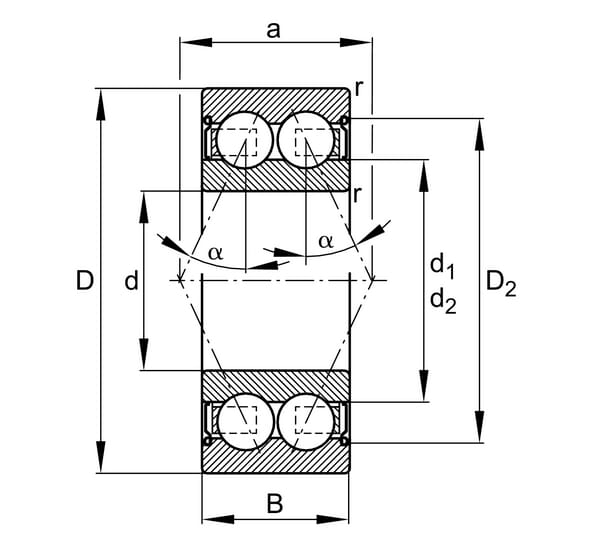

A two-row angular contact ball bearing with a 12 mm inside diameter, 32 mm outside diameter, and 15.9 mm width, supplied as a single piece. The bearing is manufactured by Schaeffler under the FAG brand and carries the original designation 3201-BB-2Z-TVH. It features a 25° contact angle, sealed with metal shields (ZZ sealing), and is rated for a maximum rotational speed of 18400 r/min with a reference speed of 20000 r/min. The bearing can operate continuously at temperatures between -20 °C and +120 °C. Basic dynamic radial load capacity is 10500 N; static capacity is 5800 N. The bearing is not regreasable. Weight is approximately 62 g. The product carries EAN 4026677952219.
Product details
| Basic radial load dynamic | 10500 N |
|---|---|
| Basic radial load static | 5800 N |
| Bearing model type | Angular contact ball bearings |
| Contact angle | 25 ° |
| Inside diameter | 12 mm |
| Inside diameter of outer ring | 25.99 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 18400 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3201-BB-2Z-TVH |
| Outside diameter | 32 mm |
| Outside diameter of inner ring | 17.2 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 20000 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | ZZ |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.06 kg |
| Width | 15.9 mm |
Logistics
| EAN | 4026677952219 |
|---|---|
| Unit of measure | EA |
| Weight | 62 g |
| Dimensions | 45 × 45 × 20 mm |
