£40.13
excl. VAT
£48.16 incl. VAT
£48.16
incl. VAT
£40.13 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 12600 N |
|---|---|
| Basic radial load static | 7400 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 15.9 mm |
| Contact angle | 30 ° |
| dInside diameter | 15 mm |
| DOutside diameter | 35 mm |
| Inside diameter of outer ring | 29.35 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 16700 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3202-BD-XL-2HRS-TVH-C3 |
| Outside diameter of inner ring | 20.96 mm |
| Radial internal clearance code | C3 |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.065 kg |
Logistics
| EAN | 4012802481259 |
|---|---|
| Unit of measure | EA |
| Weight | 69 g |
| Dimensions | 45 × 45 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000088730
FAG Angular contact ball bearing 15x35x15.9mm INA/FAG 3202B2RSRTVH
£43.25 excl.
£51.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000088732
FAG Angular contact ball bearing 15x35x15.9mm INA/FAG 3202BDXLTVHC3
£35.71 excl.
£42.85 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088733
FAG Angular contact ball bearing 15x35x15.9mm INA/FAG 3202BTVH
£36.31 excl.
£43.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000088734
FAG Angular contact ball bearing 15x35x15.9mm INA/FAG 3202BZZTVH
£40.90 excl.
£49.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380637
FAG Housing unit UCF UCF211
£43.48 excl.
£52.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000285471

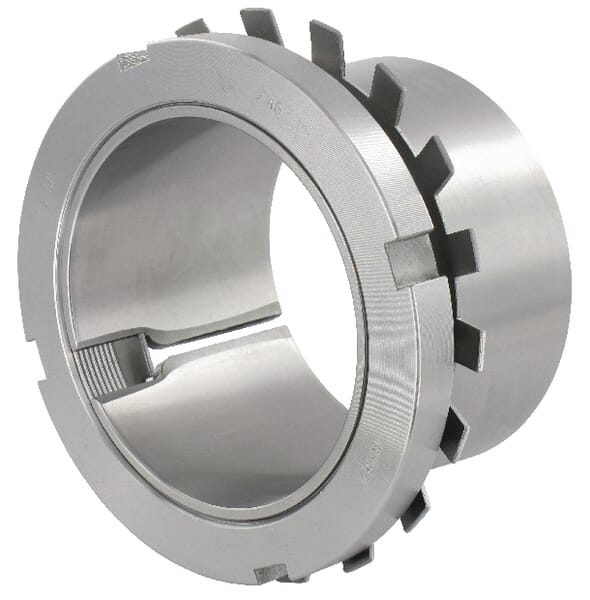

FAG Adaptor sleeve with nut 125x180x97mm H3128
