Product details
| Basic radial load dynamic | 14900 N |
|---|---|
| Basic radial load static | 7800 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 14 mm |
| Contact angle | 40 ° |
| dInside diameter | 20 mm |
| DOutside diameter | 47 mm |
| Inside diameter of outer ring | 37.04 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 21600 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 7204-B-XL-JP |
| Outside diameter of inner ring | 30.54 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 15400 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.105 kg |
Logistics
| EAN | 40266770461924054372871740 |
|---|---|
| Unit of measure | EA |
| Weight | 110 g |
| Dimensions | 50 × 50 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000166979
FAG Angular contact ball bearing 20x47x14mm INA/FAG 7204BXLJPUA
£48.49 excl.
£58.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000166980
FAG Angular contact ball bearing 20x47x14mm INA/FAG 7204BXLTVPUA
£44.43 excl.
£53.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000166977
FAG Angular contact ball bearing 20x47x14mm INA/FAG 7204BTVP
£25.58 excl.
£30.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151003

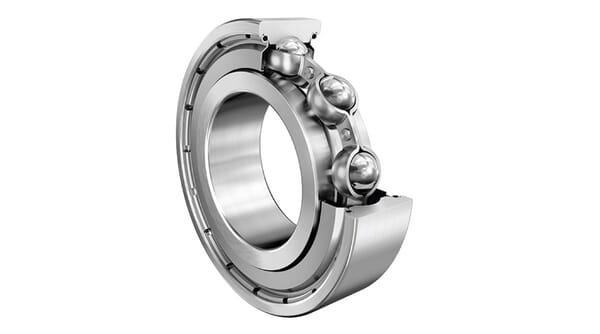

FAG Deep groove ball bearing C3 70x150x35 INA/FAG 6314ZC3
