£46.22
excl. VAT
£55.46 incl. VAT
£55.46
incl. VAT
£46.22 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 24600 N |
|---|---|
| Basic radial load static | 15900 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 22.2 mm |
| Contact angle | 30 ° |
| dInside diameter | 20 mm |
| DOutside diameter | 52 mm |
| Inside diameter of outer ring | 43.98 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 11000 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3304-BD-XL-2HRS-TVH |
| Outside diameter of inner ring | 31.94 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 8000 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.217 kg |
Logistics
| EAN | 40128024828984064327818287 |
|---|---|
| Unit of measure | EA |
| Weight | 223 g |
| Dimensions | 50 × 50 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000089716

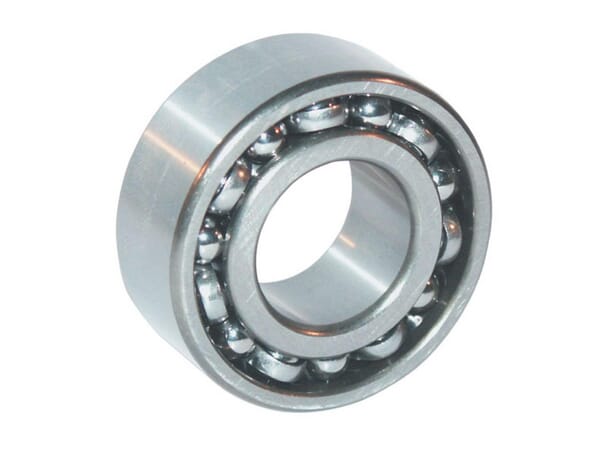

FAG Angular contact ball bearing 20x52x22.2mm INA/FAG 3304BDXL2HRSTVHC3
£59.11 excl.
£70.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000089719
FAG Angular contact ball bearing 20x52x22.2mm INA/FAG 3304BTVH
£71.21 excl.
£85.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000089717
FAG Angular contact ball bearing 20x52x22.2mm INA/FAG 3304BDXL2ZTVH
£60.87 excl.
£73.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000089718

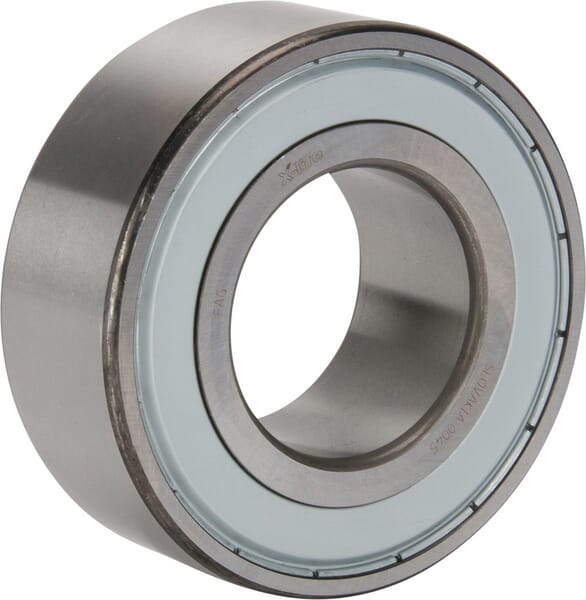

FAG Angular contact ball bearing 20x52x22.2mm INA/FAG 3304BDXL2ZTVHC3
