£69.87
excl. VAT
£83.84 incl. VAT
£83.84
incl. VAT
£69.87 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 31500 N |
|---|---|
| Basic radial load static | 21000 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 25.4 mm |
| Contact angle | 30 ° |
| dInside diameter | 25 mm |
| DOutside diameter | 62 mm |
| Inside diameter of outer ring | 51.47 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12400 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 3305-BD-XL-TVH |
| Outside diameter of inner ring | 37.63 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 10000 r/min |
| Regreasable | Yes |
| Rows number | 2 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.345 kg |
Logistics
| EAN | 4012802474824 |
|---|---|
| Unit of measure | EA |
| Weight | 348 g |
| Dimensions | 68 × 68 × 29 mm |
| Dangerous goods | No |
You might also like
BPA000089762

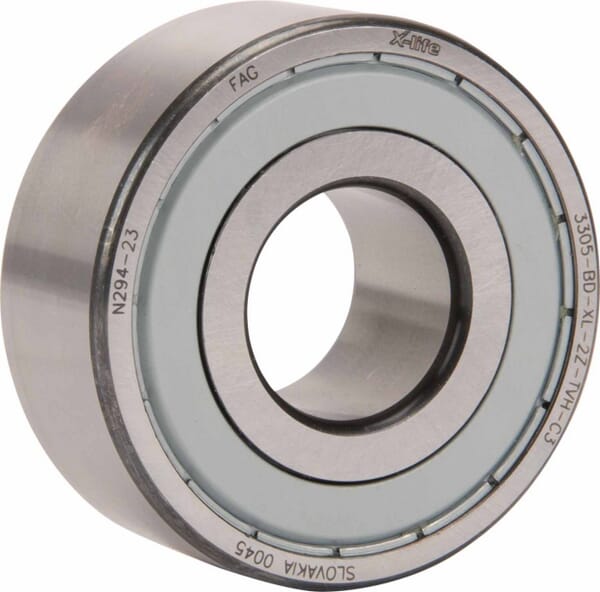

FAG Angular contact ball bearing 25x62x25.4mm INA/FAG 3305BDXL2ZTVHC3
£69.44 excl.
£83.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000089760
FAG Angular contact ball bearing 25x62x25.4mm INA/FAG 3305B2RSRTVH
£64.07 excl.
£76.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000089761
FAG Angular contact ball bearing 25x62x25.4mm INA/FAG 3305BDXL2HRSTVHC3
£72.18 excl.
£86.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000072539
FAG Spherical roller bearing 55x100x25mm INA/FAG 22211E1
£55.62 excl.
£66.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000247474

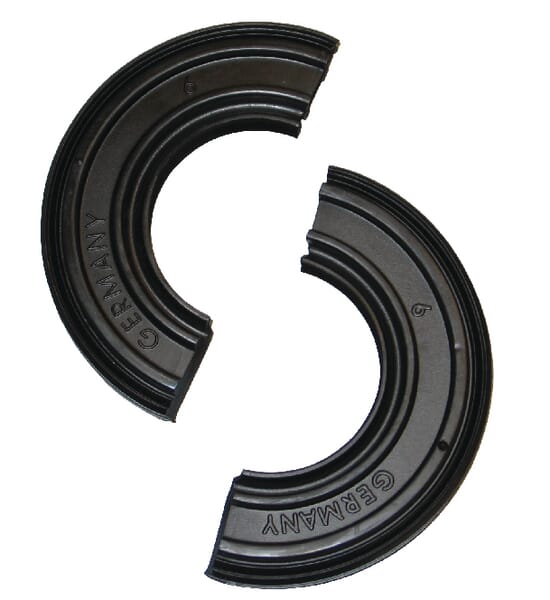

FAG Sealing rings for SNV DH512
£23.79 excl.
£28.55 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088732
FAG Angular contact ball bearing 15x35x15.9mm INA/FAG 3202BDXLTVHC3
£35.71 excl.
£42.85 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000117113
Kramp Oil seal 45x75x12mm type:CC DIN 3760 1x 457512CCP001
£4.03 excl.
£4.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000222865
Kverneland / Accord Relief valve (SAFIM-20.3121-V) AC688357
£1,388.99 excl.
£1,666.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000051889
Kramp Oil seal 16x26x8mm type:CC DIN 3760 1x 16268CCP001
£2.05 excl.
£2.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000284460
Feuer-Vogel Suction/pressure gasket Storz 32 (pawl 44mm) HD32SRN
£1.20 excl.
£1.44 incl.
In stock
Expected to ship on Monday 21 September
BPA000171332
Kramp Oil seal 3x4x3/8" type:CB DIN 3760 1x 7621016952CBP001
£6.20 excl.
£7.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000144683

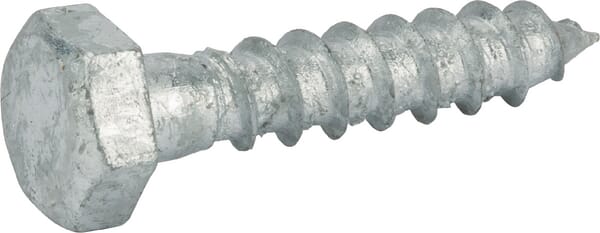

Kramp Wood screw 7x60mm, 12mm hex head, DIN 571 571760TV
