£84.05
excl. VAT
£100.86 incl. VAT
£100.86
incl. VAT
£84.05 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Basic radial load dynamic | 69000 N |
|---|---|
| Basic radial load static | 43000 N |
| Bearing model type | Angular contact ball bearings |

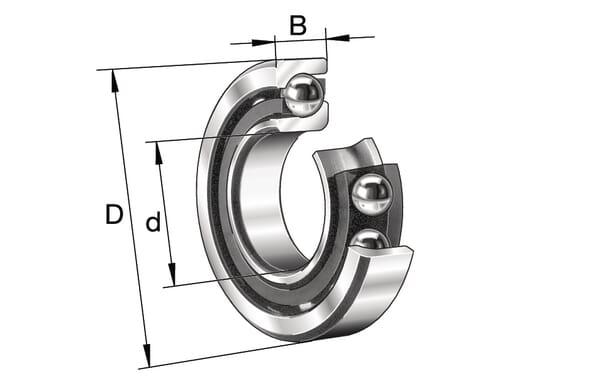

| BWidth | 25 mm |
| Contact angle | 40 ° |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Inside diameter of outer ring | 79.8 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 9300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 7309-B-XL-TVP |
| Outside diameter of inner ring | 66.7 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 7500 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.081 kg |
Logistics
| EAN | 4012801166539 |
|---|---|
| Unit of measure | EA |
| Weight | 835 g |
| Dimensions | 106 × 104 × 29 mm |
| Dangerous goods | No |
You might also like
BPA000168508

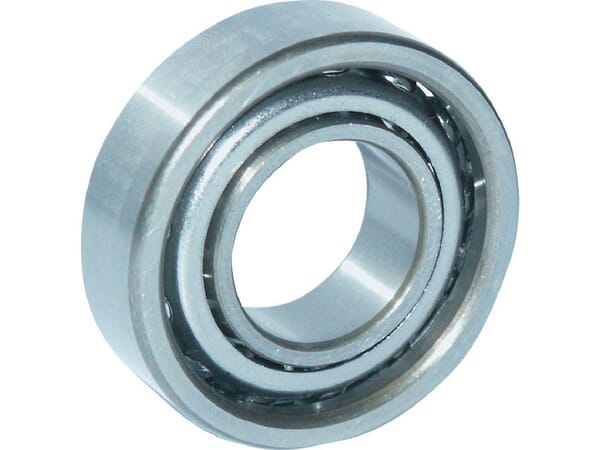

FAG Angular contact ball bearing 45x100x25mm INA/FAG 7309BXLTVPUA
£88.97 excl.
£106.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067563
FAG Spherical roller bearing 40x90x23mm 21308E1XLK
£120.61 excl.
£144.73 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000337139

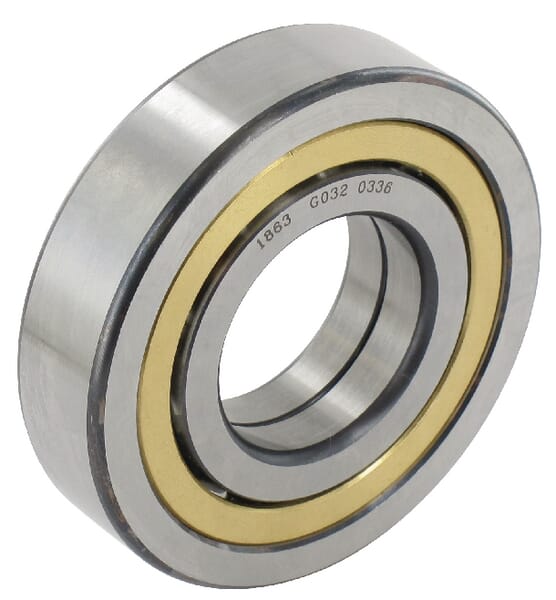

FAG Angular contact ball bearing 45x100x25mm INA/FAG QJ309MPA
