£161.59
excl. VAT
£193.91 incl. VAT
£193.91
incl. VAT
£161.59 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Basic radial load dynamic | 72000 N |
|---|---|
| Basic radial load static | 54000 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 39.7 mm |
| Contact angle | 30 ° |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Inside diameter of outer ring | 84.39 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5500 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3309-BD-XL-2HRS-TVH |
| Outside diameter of inner ring | 63.25 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 4000 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.134 kg |
Logistics
| EAN | 40128024049204064328133280 |
|---|---|
| Unit of measure | EA |
| Weight | 1328 g |
| Dimensions | 104 × 104 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping

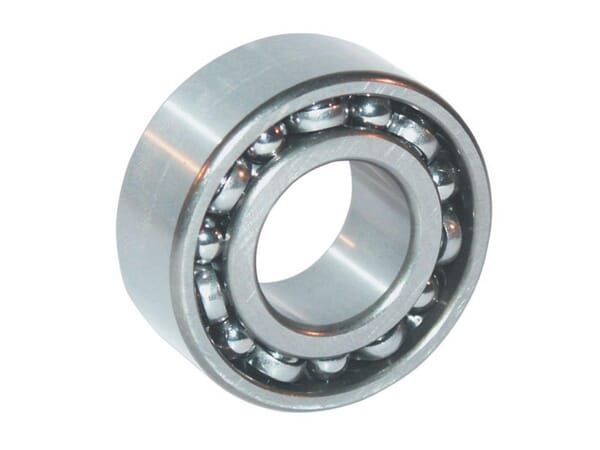

BPA000089897
