£134.84
excl. VAT
£161.81 incl. VAT
£161.81
incl. VAT
£134.84 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 75000 N |
|---|---|
| Basic radial load static | 64000 N |
| Bearing model type | Angular contact ball bearings |
| BWidth | 36.5 mm |
| Contact angle | 30 ° |
| dInside diameter | 60 mm |
| DOutside diameter | 110 mm |
| Inside diameter of outer ring | 97.02 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 4750 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3212-BD-XL-TVH |
| Outside diameter of inner ring | 78.99 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 5000 r/min |
| Regreasable | Yes |
| Rows number | 2 |
| Sealing | Open |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.125 kg |
Logistics
| EAN | 40128029071934064328179363 |
|---|---|
| Unit of measure | EA |
| Weight | 1288 g |
| Dimensions | 115 × 115 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000086020
FAG Angular contact ball bearing 60x110x36.5mm INA/FAG 3212B2RSRTVH
£114.73 excl.
£137.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000086021
FAG Angular contact ball bearing 60x110x36.5mm INA/FAG 3212BDXL2ZTVH
£154.27 excl.
£185.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155837

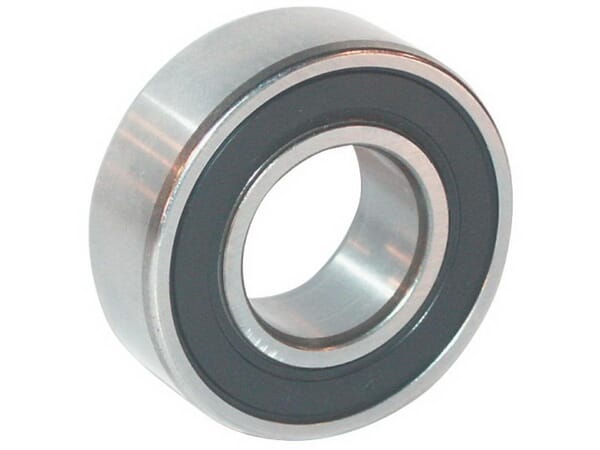

FAG Deep groove ball bearing 50x110x40mm INA/FAG 623102RS
£95.50 excl.
£114.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000038506
FAG Self-aligning ball bearing 60x110x22mm INA/FAG 1212TVHC3
£66.88 excl.
£80.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151054
FAG Deep groove ball bearing 6318MC3
£529.83 excl.
£635.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000131505
FAG Thrust ball bearing 51105
£14.71 excl.
£17.65 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000204285

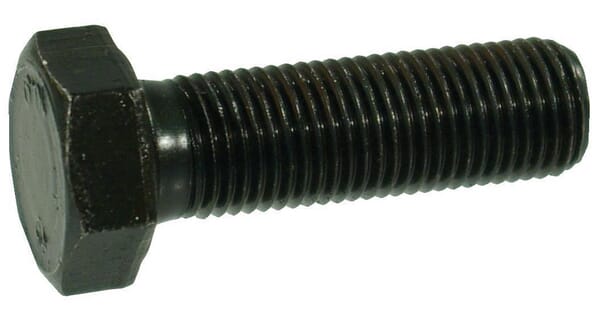

Kramp Hexagon head bolt DIN961 M18x1.50x40 steel 10.9 961181540109B
£2.38 excl.
£2.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000198473
Kramp Hexagon head bolt DIN931 M42x200 steel zinc-plated 8.8 93142200
£31.59 excl.
£37.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000116525

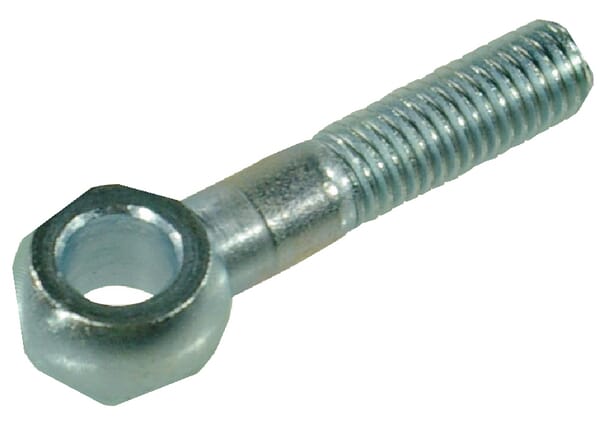

Kramp Eye bolt DIN444B M20x180 steel zinc-plated 8.8 444B2018088
