£75.78
excl. VAT
£90.94 incl. VAT
£90.94
incl. VAT
£75.78 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 46000 N |
|---|---|
| Basic radial load static | 29000 N |
| Bearing balls distance to mounting surface | 22.2 mm |
| Bearing inner ring width | 55.6 mm |
| Bearing inside diameter | 55 mm |
| Grease nipple thread diameter | M6 |
| Guide groove length | 95 mm |
| Guide groove width | 22 mm |
| Housing height | 102 mm |
| Housing length | 130 mm |
| Housing width | 146 mm |

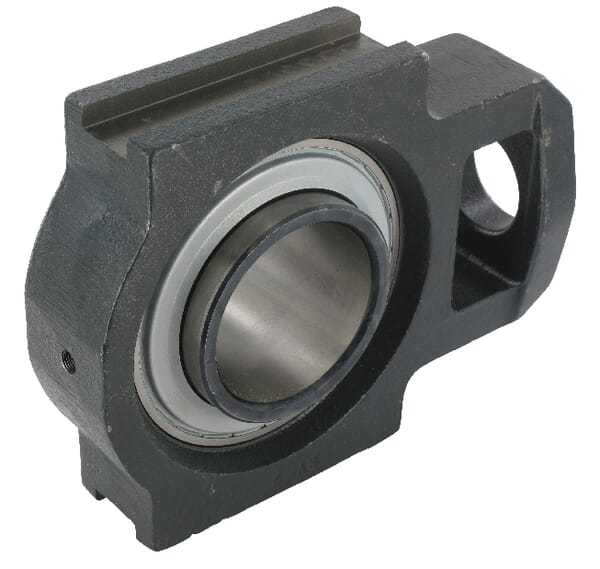

| Long description | These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. |
| Manufacturer | Schaeffler |
| Mounting holes diameter | 35 mm |
| Original number equivalent | UCT211-J7 |
| Product details | Inner bearing has extended inner ring on both sides with 2 adjusting screws, Regreasable, Self-aligning ball bearing, Wide inner ring ball bearing |
| Pros | Highly suitable for limited installation spaces, Assembled, ready for use, Pre-lubricated, Easy tensioning of belt drives. |
| Shaft vertical distance | 106 mm |
| Total height | 146 mm |
| Total length | 171 mm |
| Unit | Each |
Logistics
| EAN | 4054366900548 |
|---|---|
| Unit of measure | EA |
| Weight | 4082 g |
| Dimensions | 190 × 190 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000052227
FAG Deep groove ball bearing 45x75x10mm INA/FAG 16009
£24.70 excl.
£29.64 incl.
In stock
Expected to ship on Monday 21 September
BPA000152573
FAG Deep groove ball bearing 6x17x6mm INA/FAG 6062RS
£11.03 excl.
£13.24 incl.
In stock
Expected to ship on Monday 21 September
BPA000155470
FAG Deep groove ball bearing 50x90x20mm INA/FAG 6210
£15.66 excl.
£18.79 incl.
In stock
Expected to ship on Monday 21 September

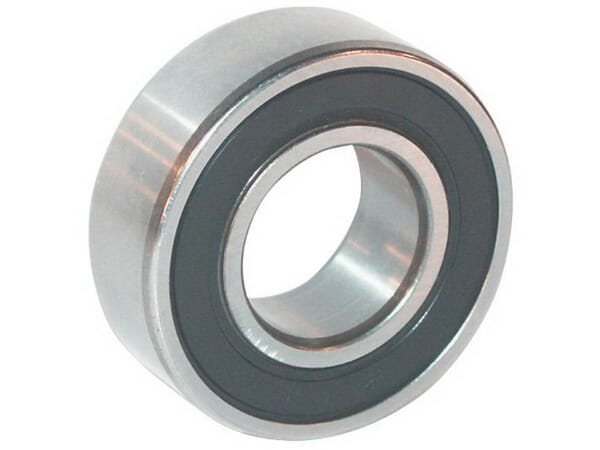

BPA000155824
