£14.49
excl. VAT
£17.39 incl. VAT
£17.39
incl. VAT
£14.49 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 15.9 mm |
| Ball centre to grease hole distance | 5 mm |
| Basic radial load dynamic | 19500 N |
| Basic radial load static | 11300 N |
| Inner ring width | 38.1 mm |
| Inside diameter | 30 mm |
| Locking screw centre to end distance | 5 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | UC206 |
| Outer ring width | 19.6 mm |
| Outside diameter | 62 mm |
| Outside diameter of inner ring | 40.2 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, RSR seal |
| Sealing width | 19.6 mm |
| Unit | Each |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4012802627657 |
|---|---|
| Unit of measure | EA |
| Weight | 318 g |
| Dimensions | 71 × 70 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000155273
FAG Deep groove ball bearing 17x40x12mm INA/FAG 6203CZ
£5.87 excl.
£7.04 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000326468
FAG Cylindrical roller bearing NU320EXLTVP2
£597.10 excl.
£716.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155310
FAG Deep groove ball bearing 20x47x14mm INA/FAG 6204CTVHC3
£5.81 excl.
£6.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000380793

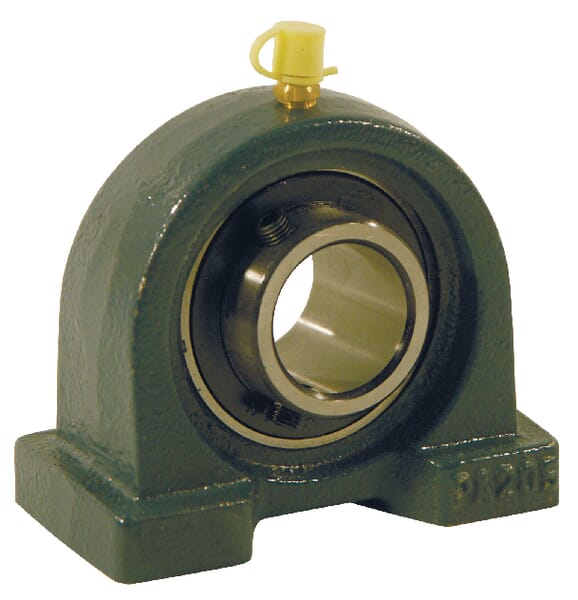

FAG Housing unit UCPA UCPA206
