£99.16
excl. VAT
£118.99 incl. VAT
£118.99
incl. VAT
£99.16 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 33.3 mm |
| Ball centre to grease hole distance | 8.5 mm |
| Basic radial load dynamic | 66000 N |
| Basic radial load static | 44500 N |
| Inner ring width | 77.8 mm |
| Inside diameter | 75 mm |
| Locking screw centre to end distance | 12 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | UC215 |
| Outer ring width | 33.4 mm |
| Outside diameter | 130 mm |
| Outside diameter of inner ring | 90 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, RSR seal |
| Sealing width | 33.4 mm |
| Unit | Each |
| Wrench/spanner size | 6.0 mm |
Logistics
| EAN | 4047643054805 |
|---|---|
| Unit of measure | EA |
| Weight | 2136 g |
| Dimensions | 150 × 150 × 82 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000081800
FAG Tapered roller bearing 90x160x32.50mm INA/FAG 30218A
£159.58 excl.
£191.50 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000136195

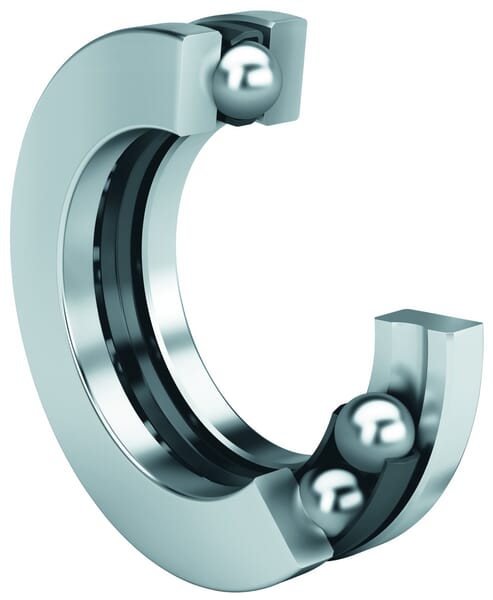

FAG Thrust ball bearing 51218FAG
£181.12 excl.
£217.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000093019
FAG Angular contact ball bearing 50x110x44.4mm INA/FAG 3310BTVH
£171.30 excl.
£205.56 incl.
In stock
Expected to ship on Thursday 24 September
BPA000155191
FAG Deep groove ball bearing 10x30x9mm INA/FAG 6200ZZC3
£4.34 excl.
£5.21 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000082317
FAG Tapered roller bearing 35x80x22.75mm INA/FAG 30307A
£17.83 excl.
£21.40 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000082452
FAG Tapered roller bearing 30318A
£416.07 excl.
£499.28 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000240321

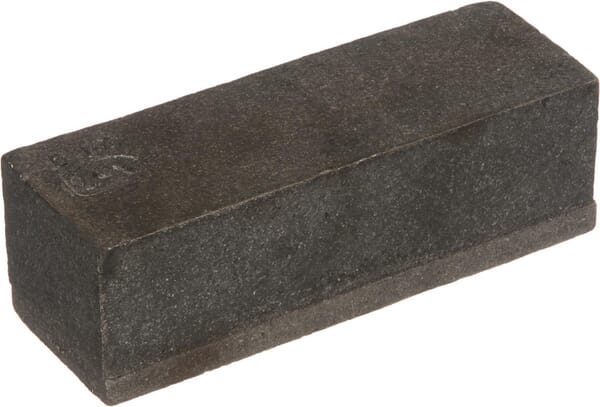

Wear strip Chocky bar 150x50x50mm standard CCB1505050S
