£34.44
excl. VAT
£41.33 incl. VAT
£41.33
incl. VAT
£34.44 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 15100 N |
| Basic radial load static | 10400 N |
| Bearing model type | Cylindrical roller bearings |
| Benefits | Correct operating play at high temperature or press fit |
| BWidth | 11 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| Details | C3 radial bearing clearance |
| dInside diameter | 15 mm |
| DOutside diameter | 35 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 31000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ202-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 17900 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.048 kg |
Logistics
| EAN | 4026677048578 |
|---|---|
| Unit of measure | EA |
| Weight | 52 g |
| Dimensions | 46 × 45 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000072464
FAG Spherical roller bearing 25x52x18mm INA/FAG 22205E1XLKC3
£97.13 excl.
£116.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150512
FAG Deep groove ball bearing 35x47x7 INA/FAG 618072ZHLC
£34.18 excl.
£41.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000155637
FAG Deep groove ball bearing 95x170x32mm INA/FAG 62192ZC3
£155.27 excl.
£186.32 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

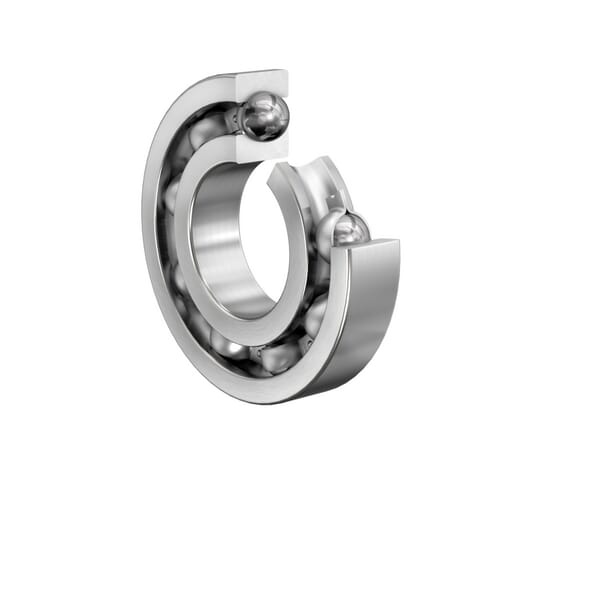

BPA000154308
