£35.52
excl. VAT
£42.62 incl. VAT
£42.62
incl. VAT
£35.52 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 24700 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 14 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 20 mm |
| DOutside diameter | 47 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 22000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU204-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 16000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.011 kg |
Logistics
| EAN | 4012801179133 |
|---|---|
| Unit of measure | EA |
| Weight | 115 g |
| Dimensions | 52 × 50 × 17 mm |
| Dangerous goods | No |
You might also like
BPA000150159
FAG Deep groove ball bearing 30x55x13mm INA/FAG 6006ZC3
£8.96 excl.
£10.75 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000072918
FAG Spherical roller bearing 100x215x73mm 22320E1XLC3
£787.42 excl.
£944.90 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000131658

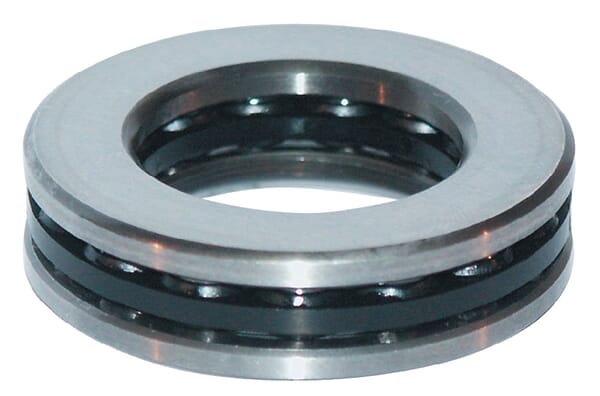

FAG Thrust ball bearing 51124
£138.80 excl.
£166.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000153035

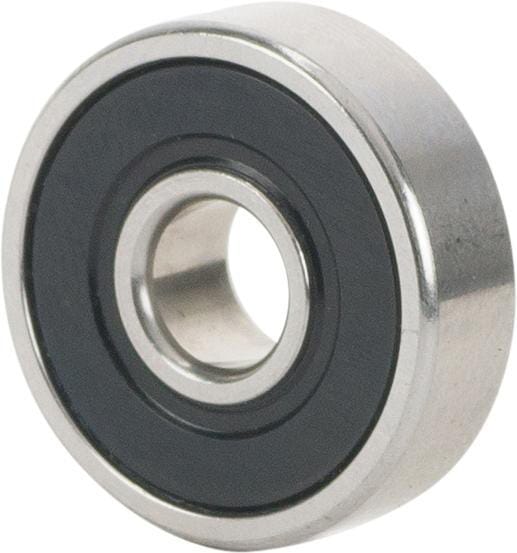

FAG Deep groove ball bearing 6x19x6mm INA/FAG 6262RS
£4.50 excl.
£5.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000089600
FAG Angular contact ball bearing 15x42x19mm INA/FAG 33022RS
£53.22 excl.
£63.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380809

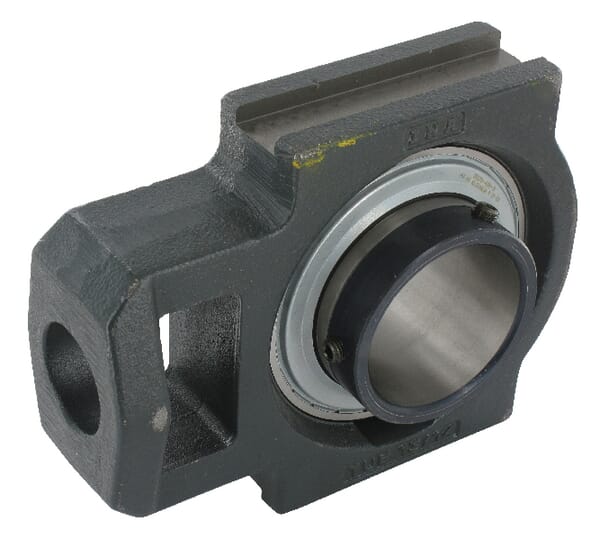

FAG Housing unit UCT UCT205
