£71.24
excl. VAT
£85.49 incl. VAT
£85.49
incl. VAT
£71.24 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 58000 N |
| Basic radial load static | 50000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 20 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 30 mm |
| DOutside diameter | 62 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 16300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP2206-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 12000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.245 kg |
Logistics
| EAN | 4012801180184 |
|---|---|
| Unit of measure | EA |
| Weight | 274 g |
| Dimensions | 68 × 68 × 24 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000071066
FAG Self-aligning ball bearing 2317KMC3
£838.75 excl.
£1,006.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155534
FAG Deep groove ball bearing 60x110x22mm INA/FAG 62122RSC3
£31.83 excl.
£38.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000380742
FAG Housing unit UCP UCP204
£18.70 excl.
£22.44 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000052427
FAG Deep groove ball bearing 100x150x16mm INA/FAG 16020
£83.19 excl.
£99.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153811
FAG Deep groove ball bearing 50x110x27mm INA/FAG 6310ZZC3
£32.77 excl.
£39.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000093031
FAG Tapered roller bearing 60x100x30x23mm INA/FAG 33112A
£115.34 excl.
£138.41 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000276196
Kramp Hydraulic pump G178940010010 Fendt G178940010010KR
£238.01 excl.
£285.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209220

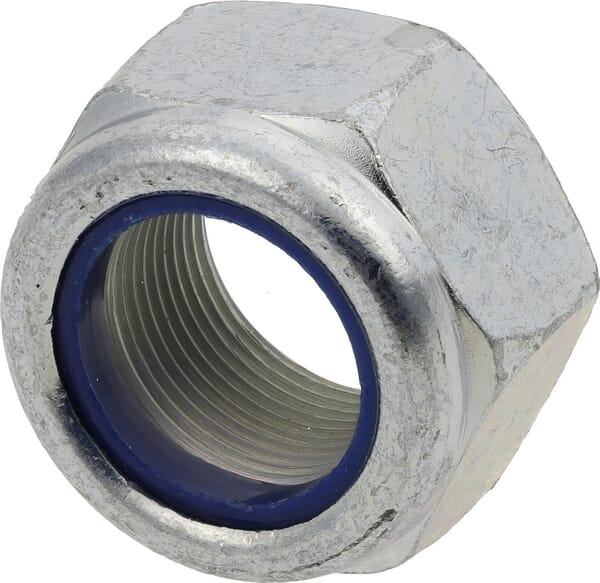

Kramp Hexagon Lock Nut DIN985 M24x1.50 steel zinc-Plated Class 10 985241510
