£70.96
excl. VAT
£85.15 incl. VAT
£85.15
incl. VAT
£70.96 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 59000 N |
| Basic radial load static | 50000 N |

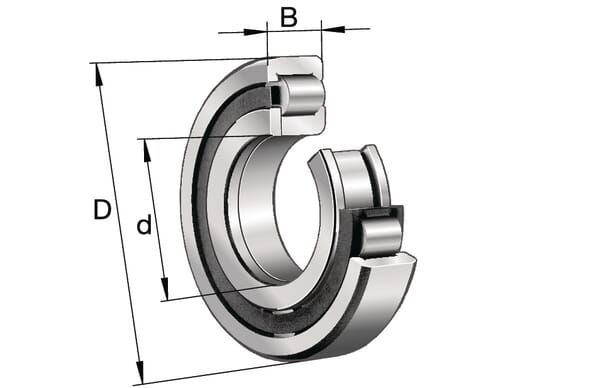

| Bearing model type | Cylindrical roller bearings |
| BWidth | 17 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 35 mm |
| DOutside diameter | 72 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 14100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP207-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 10000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.302 kg |
Logistics
| EAN | 4012801021500 |
|---|---|
| Unit of measure | EA |
| Weight | 319 g |
| Dimensions | 77 × 75 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000153254
FAG Deep groove ball bearing 8x24x8mm INA/FAG 628ZZ
£5.71 excl.
£6.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000153471
FAG Deep groove ball bearing 15x42x13mm INA/FAG 63022RSC3
£6.36 excl.
£7.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000380811

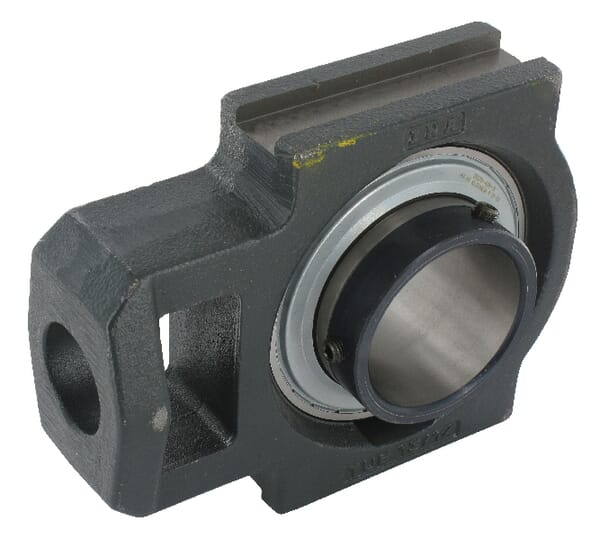

FAG Housing unit UCT UCT207
