£64.69
excl. VAT
£77.63 incl. VAT
£77.63
incl. VAT
£64.69 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 73000 N |
| Basic radial load static | 65000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 35 mm |
| DOutside diameter | 72 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2207-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | C3 |
| Ref rotation speed | 7200 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.404 kg |
Logistics
| EAN | 4012801262477 |
|---|---|
| Unit of measure | EA |
| Weight | 413 g |
| Dimensions | 75 × 75 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000153471
FAG Deep groove ball bearing 15x42x13mm INA/FAG 63022RSC3
£6.36 excl.
£7.63 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000150843
FAG Deep groove ball bearing C3 90x140x24 INA/FAG 60182ZC3
£99.93 excl.
£119.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000285135
FAG Adaptor sleeve with nut 60x85x40mm H213
£39.10 excl.
£46.92 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000052451
FAG Deep groove ball bearing 120x180x19mm INA/FAG 16024
£135.33 excl.
£162.40 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000155633
FAG Deep groove ball bearing 95x170x32mm INA/FAG 62192RS
£217.63 excl.
£261.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000072203
FAG Self-aligning ball bearing 30x62x20mm INA/FAG 22062RSTVH
£25.62 excl.
£30.74 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000357611

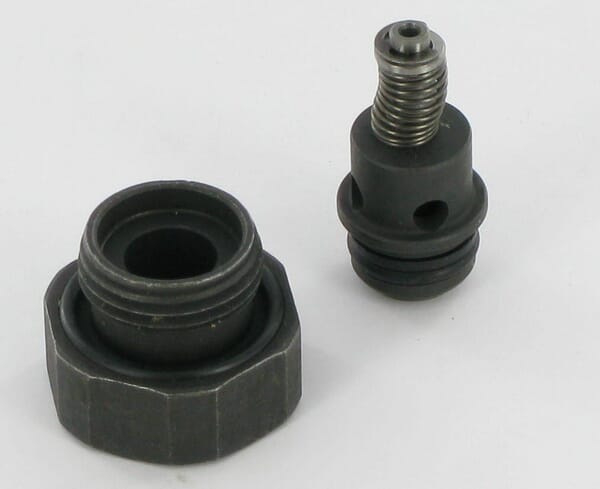

Walvoil Anti-shock valve SD10/SDS150 P(G) 20-35 bar SDS9150VP120
£61.66 excl.
£73.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000090325
Corteco Seal B1VIDRW 68x90x10 FKM 3383568M1N
£14.70 excl.
£17.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000151923
Kramp Oil seal 63x88x10mm type:CB DIN 3760 1x 638810CBP001
£4.00 excl.
£4.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000131453

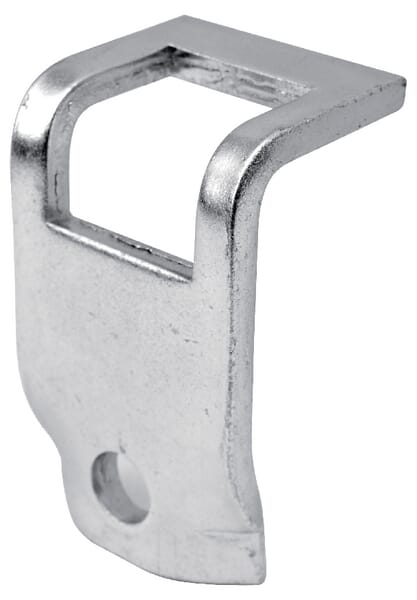

Non Original S Tine clamp 32x10mm for frame 12x50mm zinc-plated 51101417000060C
£6.66 excl.
£7.99 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000199493
Kramp Hex head bolt UNC 1/2"x2 1/4" DIN931 steel zinc-plated 8.8 93112214UNC
£1.91 excl.
£2.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000251515

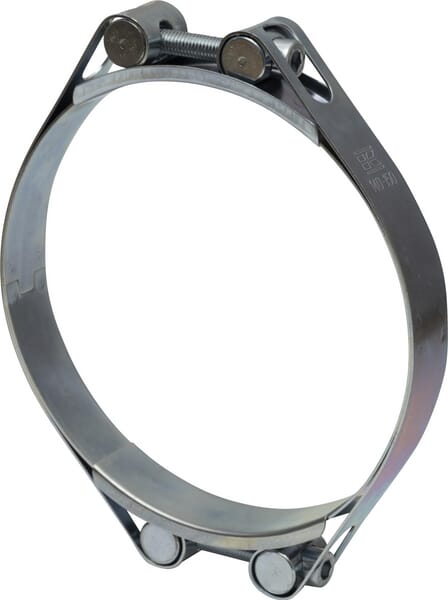

Kramp Hose clamp, 140-150mm double bolt, double band DIN912 zinc plated DBHC140150
