£64.69
excl. VAT
£77.63 incl. VAT
£77.63
incl. VAT
£64.69 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 73000 N |
| Basic radial load static | 65000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 35 mm |
| DOutside diameter | 72 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU2207-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 10000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 4.064 kg |
Logistics
| EAN | 4012801179478 |
|---|---|
| Unit of measure | EA |
| Weight | 406 g |
| Dimensions | 76 × 76 × 26 mm |
| Dangerous goods | No |
You might also like
BPA000155571
FAG Deep groove ball bearing 65x120x23mm INA/FAG 6213ZZC3
£76.51 excl.
£91.81 incl.
In stock
Expected to ship on Friday 18 September
BPA000112009
FAG Deep groove ball bearing 10x30x14mm INA/FAG 4200BBTVH
£34.72 excl.
£41.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000085198
FAG Tapered roller bearing 25x62x18.25mm INA/FAG 31305A
£33.51 excl.
£40.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000089630
FAG Angular contact ball bearing 15x42x19mm INA/FAG 3302BTVH
£51.37 excl.
£61.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380668

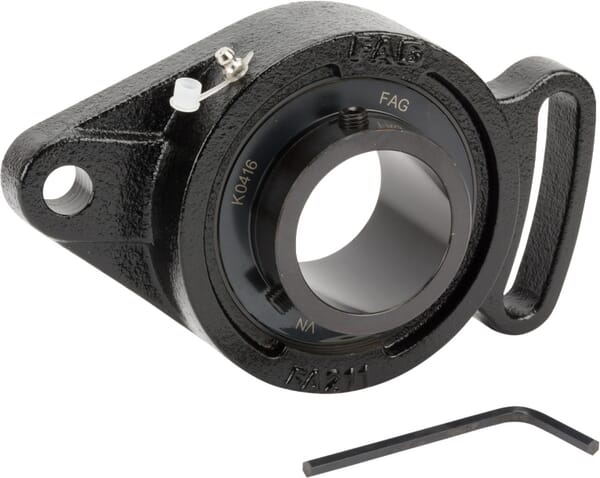

FAG Housing unit UCFA211J7
£96.24 excl.
£115.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000166945

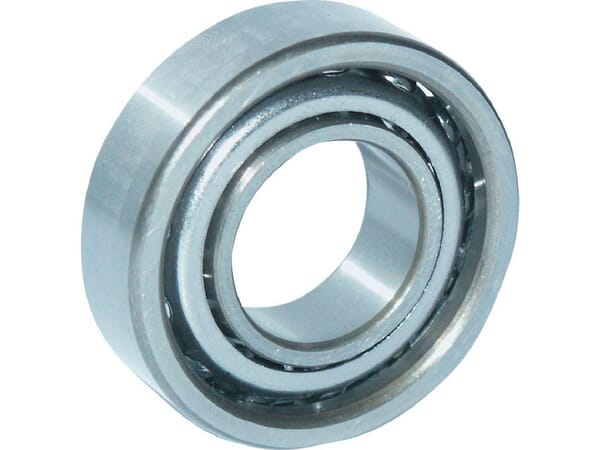

FAG Angular contact ball bearing 15x35x11mm INA/FAG 7202BTVP
