£114.03
excl. VAT
£136.84 incl. VAT
£136.84
incl. VAT
£114.03 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

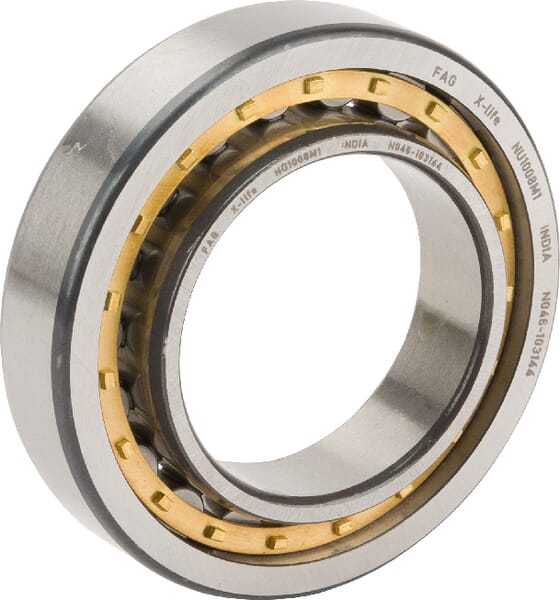

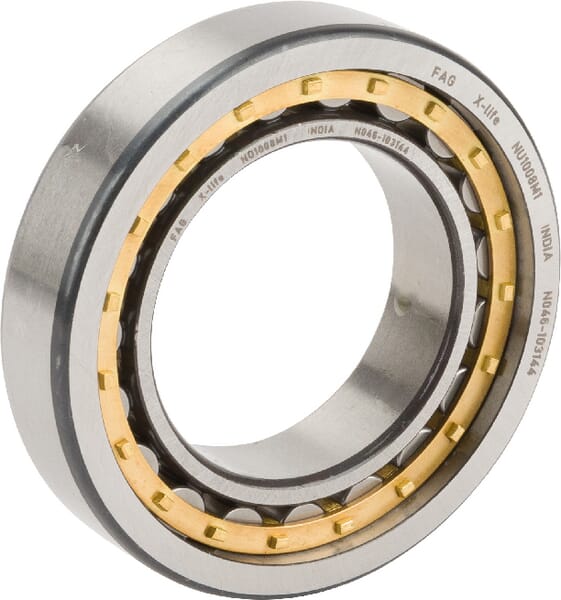

Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 33500 N |
| Basic radial load static | 30500 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 15 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 40 mm |
| DOutside diameter | 68 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 20400 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU1008-XL-M1 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 8900 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 2.185 kg |
Logistics
| EAN | 4012801021135 |
|---|---|
| Unit of measure | EA |
| Weight | 222 g |
| Dimensions | 75 × 75 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000052227
FAG Deep groove ball bearing 45x75x10mm INA/FAG 16009
£24.70 excl.
£29.64 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000369291

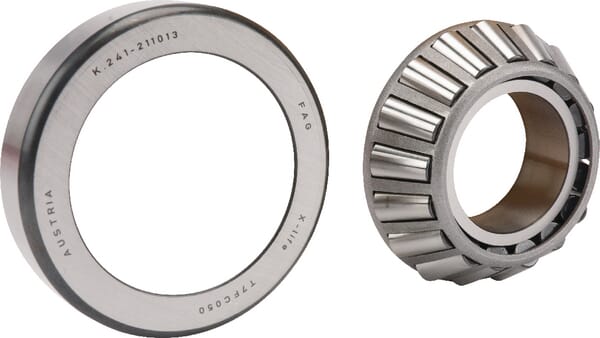

FAG Bearing 50x105x32mm INA/FAG T7FC050
