£53.61
excl. VAT
£64.33 incl. VAT
£64.33
incl. VAT
£53.61 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 63000 N |
| Basic radial load static | 53000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 18 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 40 mm |
| DOutside diameter | 80 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU208-E-XL-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | C3 |
| Ref rotation speed | 7500 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 0.365 kg |
Logistics
| EAN | 4012801179218 |
|---|---|
| Unit of measure | EA |
| Weight | 378 g |
| Dimensions | 85 × 85 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000326273
FAG Cylindrical roller bearing 40x80x18mm INA/FAG NU208ETVP2
£58.12 excl.
£69.74 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000093106
FAG Angular contact ball bearing 3313BTVH
£411.48 excl.
£493.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380807
FAG Housing unit UCT203J7
£32.85 excl.
£39.42 incl.
In stock
Expected to ship on Tuesday 22 September

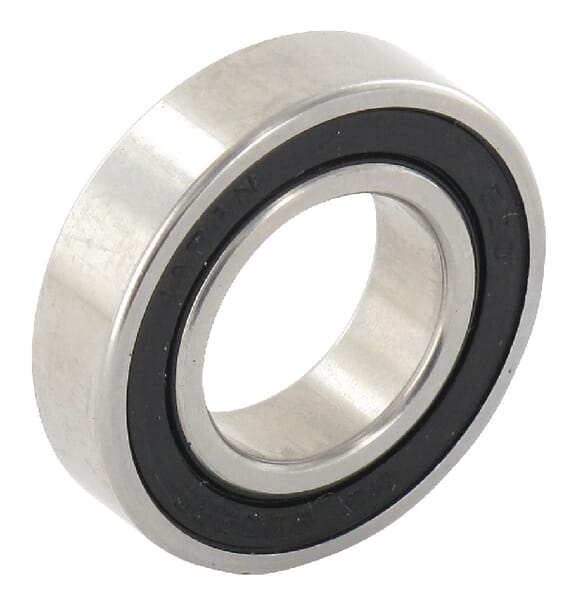

BPA000154966
