£70.45
excl. VAT
£84.54 incl. VAT
£84.54
incl. VAT
£70.45 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 63000 N |
| Basic radial load static | 53000 N |

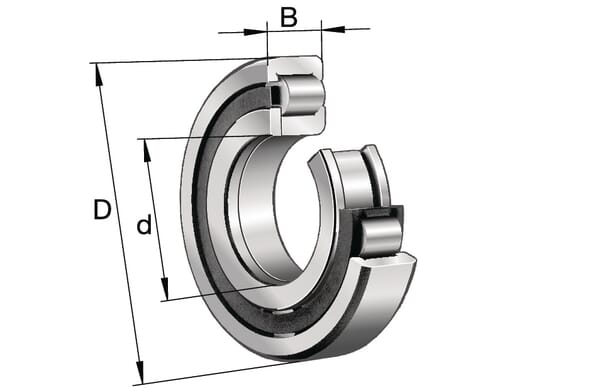

| Bearing model type | Cylindrical roller bearings |
| BWidth | 18 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 40 mm |
| DOutside diameter | 80 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP208-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 9000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.384 kg |
Logistics
| EAN | 4012801021586 |
|---|---|
| Unit of measure | EA |
| Weight | 401 g |
| Dimensions | 86 × 86 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000082301
FAG Tapered roller bearing 25x62x18.25mm INA/FAG 30305A
£14.72 excl.
£17.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000380537
FAG Bearing insert 25x52x17.6mm INA/FAG UC205INA
£13.11 excl.
£15.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000150756
FAG Deep groove ball bearing 60x95x18mm INA/FAG 6012ZZC3
£26.15 excl.
£31.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000088639
FAG Angular contact ball bearing 10x30x14mm INA/FAG 3200BBTVH
£36.41 excl.
£43.69 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326327
FAG Cylindrical roller bearing 45x85x23mm INA/FAG NU2209ETVP2
£78.29 excl.
£93.95 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000266499

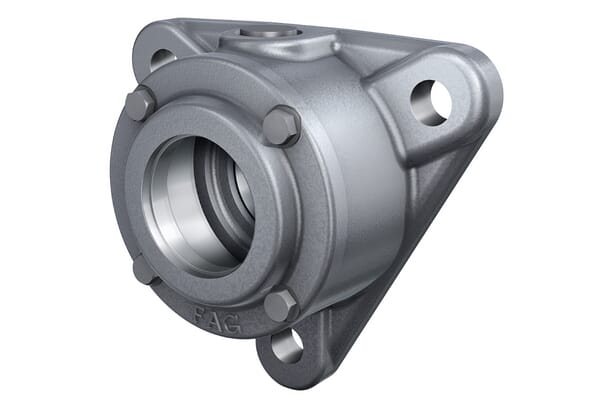

FAG Bearing housing F11204FAG
£121.67 excl.
£146.00 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000019613
Kramp V-belt pulley 2 groove A or SPA diameter 68.50mm for taperlockbush 1008 063A2TL
£12.55 excl.
£15.06 incl.
In stock
Expected to ship on Thursday 24 September
BPA000115164
Non Original Silage wagon knife suitable for Pöttinger Ernteprofi, Ladeprofi, Trend 434070N
£40.81 excl.
£48.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000179567
Kramp Countersunk head screw DIN7991 M6x50 steel zinc-plated 10.9 7991650
£0.29 excl.
£0.35 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000144698
Kramp Wood screw 8x110mm, 13mm hex head, DIN 571 5718110TV
£0.37 excl.
£0.44 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000400957
SKF Deep groove ball bearing 10x26x8mm W60002RS1VP311
£30.26 excl.
£36.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000052296
Honda machinery parts Gasket set Honda 16010ZV4005
£13.33 excl.
£16.00 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000159391
Kramp Hexagon flange nut DIN6923 M5x0.80 steel zinc-plated Class 8 6923T5
£0.06 excl.
£0.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000247953
Kramp Coach bolt washer M8x35x1.5mm, Steel Zinc-plated CR835
£0.12 excl.
£0.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000041944

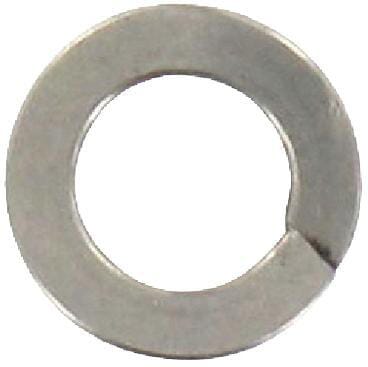

Kramp Spring lock washer M8x14.8x1.6mm, Stainless steel A4 DIN 128a 128A8RVSA4P100
