£67.82
excl. VAT
£81.38 incl. VAT
£81.38
incl. VAT
£67.82 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 96000 N |
| Basic radial load static | 79000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 40 mm |
| DOutside diameter | 90 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 10900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU308-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 7500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.639 kg |
Logistics
| EAN | 4012801179805 |
|---|---|
| Unit of measure | EA |
| Weight | 654 g |
| Dimensions | 95 × 95 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000258023

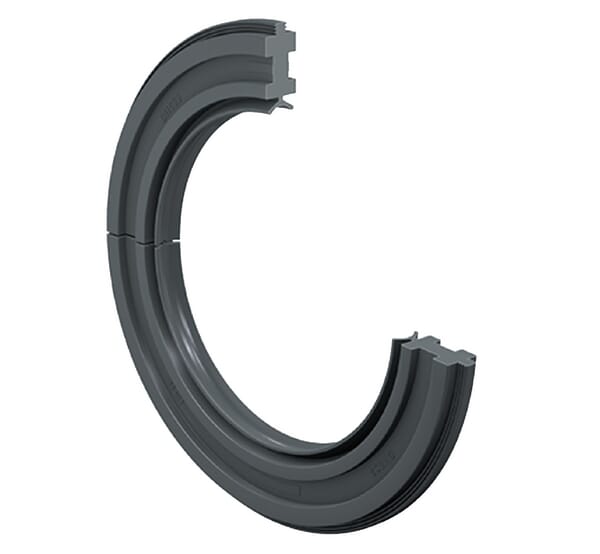

FAG Double lip seal EDH508
£16.39 excl.
£19.67 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000155388
FAG Deep groove ball bearing 30x62x16mm INA/FAG 6206ZZC3
£7.90 excl.
£9.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000042457
FAG Self-aligning ball bearing 1317M
£600.34 excl.
£720.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000070893
FAG Self-aligning ball bearing 23112RSTVH
£249.20 excl.
£299.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000285491

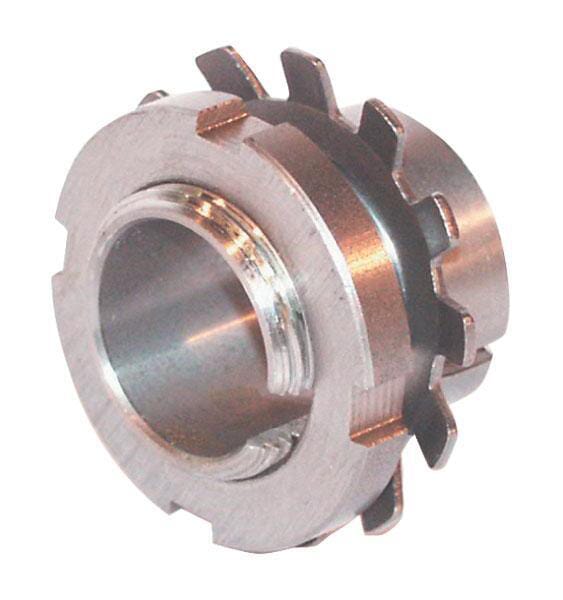

FAG Adaptor sleeve with nut 70x105x59mm H316
£73.93 excl.
£88.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000151014
FAG Deep groove ball bearing 75x160x37mm INA/FAG 63152RSRC3
£127.89 excl.
£153.47 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000195877

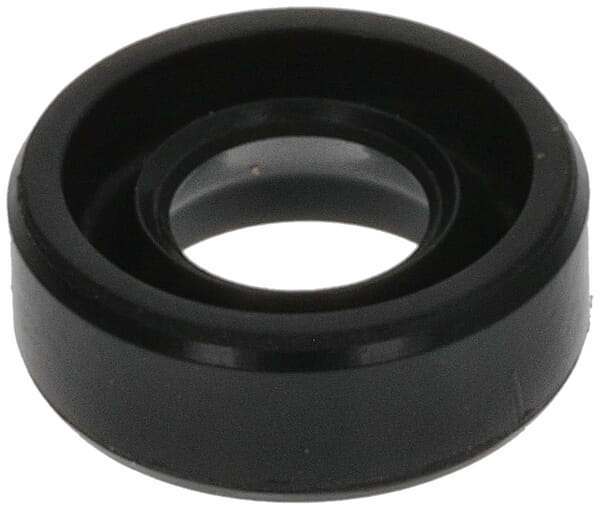

Honda Oil seal 6x11x4 (Arai) 91231Z1V003
£2.56 excl.
£3.08 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000121482
Kramp Oil seal 47x70x10mm type:CC DIN 3760 10x 477010CCP010
£25.00 excl.
£30.00 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000209249

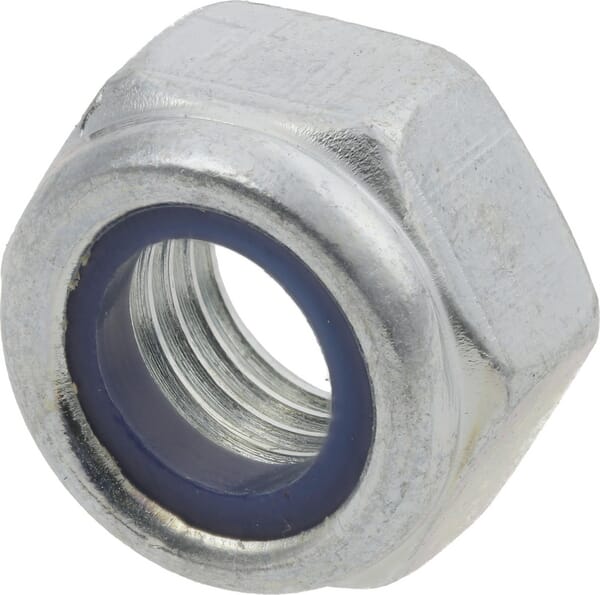

Kramp Hexagon lock nut DIN985 M4x0.70 steel zinc-plated |8| 9854
