£120.64
excl. VAT
£144.77 incl. VAT
£144.77
incl. VAT
£120.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

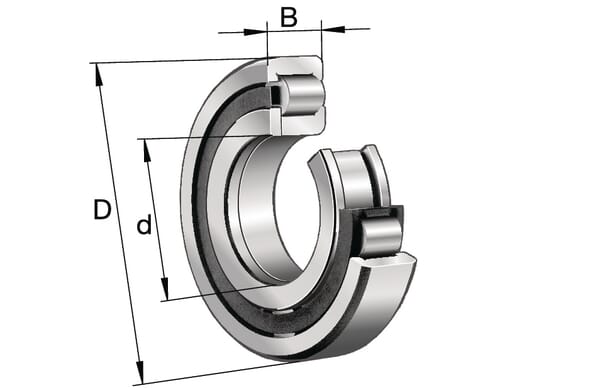

Product details
| Application range | High radial loads and high speeds, Manual gearbox, Gearbox casing, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 116000 N |
| Basic radial load static | 99000 N |
| Bearing model type | Cylindrical roller bearings |
| Benefits | Longer service life at higher temperatures |
| BWidth | 25 mm |
| Consists of | Cylindrical roller bearing with NUP inner ring. |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 9800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP309-E-TVP2-C3 |
| Radial internal clearance code | C3 |
| Ref rotation speed | 6700 r/min |
| Rows number | 1 |
| Sealing | Open |
| Technical info | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Unit | Each |
| Weight | 0.093 kg |
Logistics
| EAN | 4012801180344 |
|---|---|
| Unit of measure | EA |
| Weight | 935 g |
| Dimensions | 106 × 104 × 33 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326307
FAG Cylindrical roller bearing 90x160x30mm INA/FAG NU218ETVP2
£236.54 excl.
£283.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067609
FAG Spherical roller bearing 65x140x33mm INA/FAG 21313E1C3
£225.75 excl.
£270.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000326291
FAG Cylindrical roller bearing NU214EXLTVP2C3
£122.20 excl.
£146.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247476
FAG Sealing rings for SNV DH513
£18.62 excl.
£22.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000072254

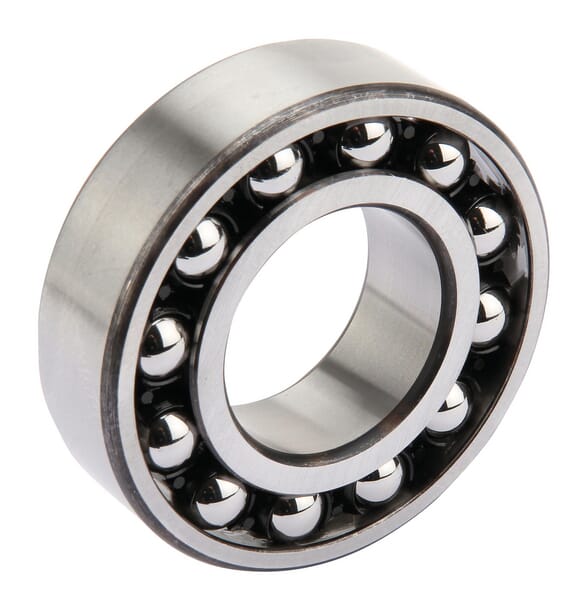

FAG Self-aligning ball bearing 45x85x23mm INA/FAG 2209TVH
