£110.72
excl. VAT
£132.86 incl. VAT
£132.86
incl. VAT
£110.72 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 87000 N |
| Basic radial load static | 82000 N |

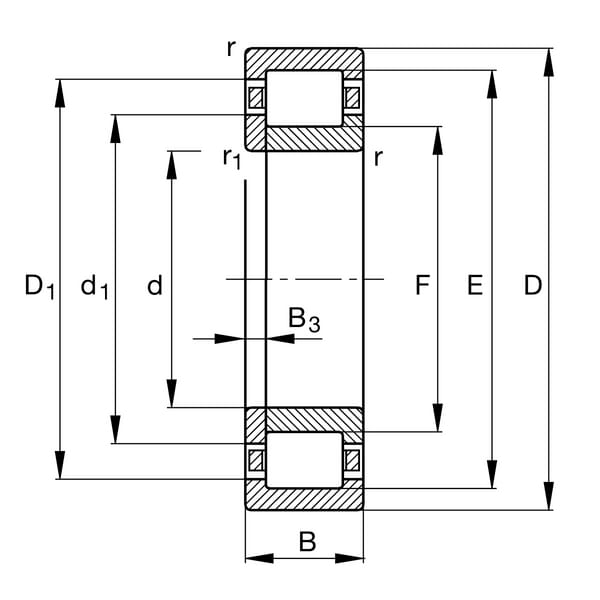

| Bearing model type | Cylindrical roller bearings |
| Consists of | Cylindrical bearing, Inner ring NUP |
| Inside diameter | 45 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 11800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP2209-E-TVP2 |
| Outside diameter | 85 mm |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 8500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Width | 23 mm |
Logistics
| EAN | 4054371383695 |
|---|---|
| Unit of measure | EA |
| Weight | 553 g |
| Dimensions | 93 × 93 × 27 mm |
| Dangerous goods | No |
