£99.34
excl. VAT
£119.21 incl. VAT
£119.21
incl. VAT
£99.34 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 131000 N |
| Basic radial load static | 114000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 27 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 50 mm |
| DOutside diameter | 110 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU310-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 6300 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.112 kg |
Logistics
| EAN | 4012801179881 |
|---|---|
| Unit of measure | EA |
| Weight | 1150 g |
| Dimensions | 115 × 115 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000030384

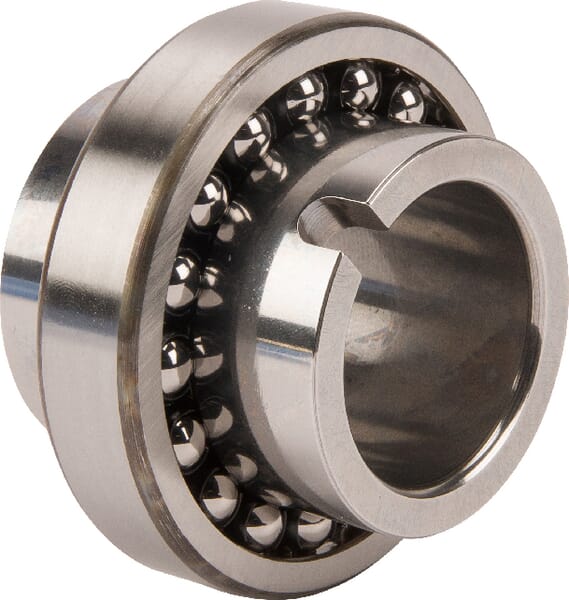

FAG Self-aligning ball bearing 40x80x56mm INA/FAG 11208TVH
