£145.20
excl. VAT
£174.24 incl. VAT
£174.24
incl. VAT
£145.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 131000 N |
| Basic radial load static | 114000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 27 mm |
| Consists of | Cylindrical bearing, Inner ring NUP |
| dInside diameter | 50 mm |
| DOutside diameter | 110 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NUP310-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 6300 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.119 kg |
Logistics
| EAN | 4012801180368 |
|---|---|
| Unit of measure | EA |
| Weight | 1211 g |
| Dimensions | 115 × 115 × 33 mm |
| Dangerous goods | No |
You might also like
BPA000285461

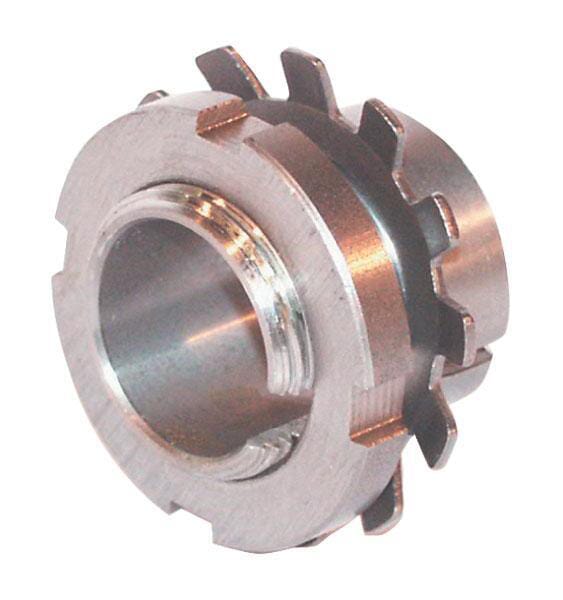

FAG Adaptor sleeve with nut 55x80x47mm H312
£29.61 excl.
£35.53 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000136627
FAG Thrust ball bearing 51305
£32.00 excl.
£38.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000285283

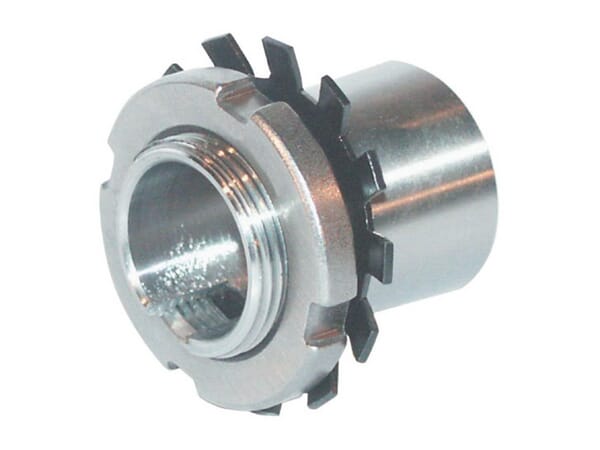

FAG Adaptor sleeve with nut 60x85x65mm H2313
£69.59 excl.
£83.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000154961
FAG Deep groove ball bearing 12x24x6mm INA/FAG 619012ZHLC
£10.65 excl.
£12.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000153035

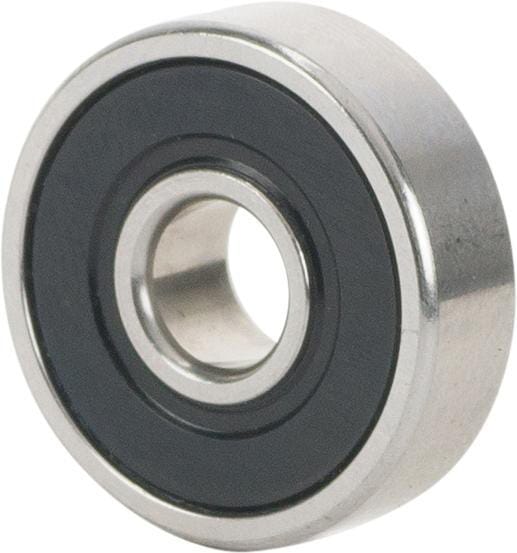

FAG Deep groove ball bearing 6x19x6mm INA/FAG 6262RS
