£84.90
excl. VAT
£101.88 incl. VAT
£101.88
incl. VAT
£84.90 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 92000 N |
| Basic radial load static | 88000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 23 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 50 mm |
| DOutside diameter | 90 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 11100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU2210-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 8000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.553 kg |
Logistics
| EAN | 4012801179553 |
|---|---|
| Unit of measure | EA |
| Weight | 571 g |
| Dimensions | 94 × 95 × 29 mm |
| Dangerous goods | No |
You might also like
BPA000158372
FAG Deep groove ball bearing 9x17x5mm INA/FAG 689ZZ
£10.72 excl.
£12.86 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000088723
FAG Tapered roller bearing 130x200x45mm INA/FAG 32026X
£374.48 excl.
£449.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000089662
FAG Angular contact ball bearing 17x47x22.2mm INA/FAG 3303BDXLTVHC3
£51.41 excl.
£61.69 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000072143
FAG Self-aligning ball bearing 15x35x14mm INA/FAG 2202TVH
£32.95 excl.
£39.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155526
FAG Deep groove ball bearing 55x100x21mm INA/FAG 6211Z
£33.98 excl.
£40.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285463
FAG Adaptor sleeve with nut 90x140x76mm H3120FAG
£177.25 excl.
£212.70 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000204204

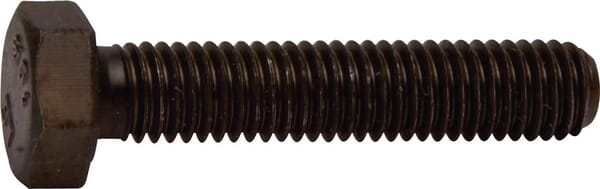

Kramp Hexagon head bolt DIN961 M10x1.25x40 10.9 Kramp Black 9611012540109B
