£145.57
excl. VAT
£174.68 incl. VAT
£174.68
incl. VAT
£145.57 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 159000 N |
| Basic radial load static | 139000 N |
| Bearing model type | Cylindrical roller bearings |

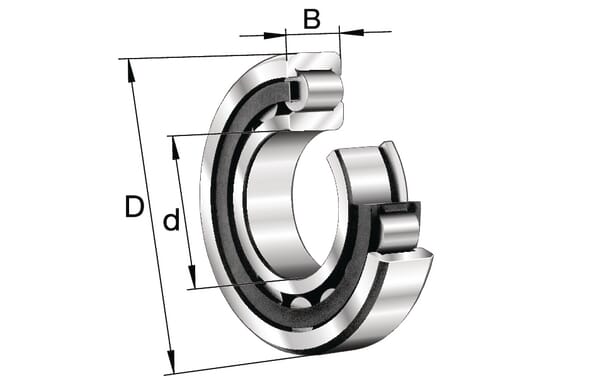

| BWidth | 29 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 55 mm |
| DOutside diameter | 120 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8000 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ311-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 5600 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.148 kg |
Logistics
| EAN | 4012801177108 |
|---|---|
| Unit of measure | EA |
| Weight | 1515 g |
| Dimensions | 127 × 125 × 35 mm |
| Dangerous goods | No |
