£84.19
excl. VAT
£101.03 incl. VAT
£101.03
incl. VAT
£84.19 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 112000 N |
| Basic radial load static | 103000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 22 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 60 mm |
| DOutside diameter | 110 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU212-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 6300 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 0.079 kg |
Logistics
| EAN | 4012801179348 |
|---|---|
| Unit of measure | EA |
| Weight | 852 g |
| Dimensions | 115 × 118 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000155354
FAG Deep groove ball bearing 25x52x15mm INA/FAG 6205H2RS
£35.09 excl.
£42.11 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000325120
FAG Cylindrical roller bearing NJ NJ2314ETVP2
£404.36 excl.
£485.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380534
FAG Bearing insert 20x47x16.8mm INA/FAG UC204INA
£11.99 excl.
£14.39 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000235584

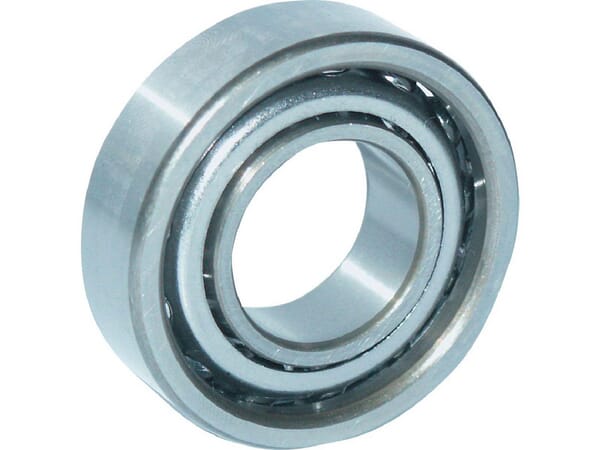

FAG Spindle bearing 17x35x10mm INA/FAG B7003CTP4SK5UL
£187.70 excl.
£225.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150367

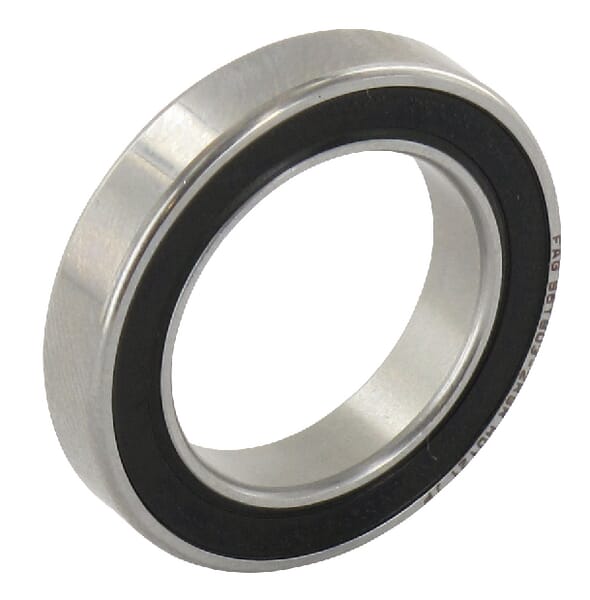

FAG Deep groove ball bearing 17x26x5mm INA/FAG 61803H2RS
