£125.85
excl. VAT
£151.02 incl. VAT
£151.02
incl. VAT
£125.85 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 151000 N |
| Basic radial load static | 152000 N |

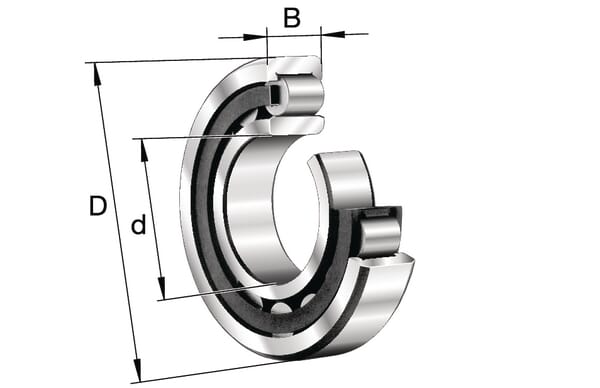

| Bearing model type | Cylindrical roller bearings |
| BWidth | 28 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 60 mm |
| DOutside diameter | 110 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU2212-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 6300 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4012801179607 |
|---|---|
| Unit of measure | EA |
| Weight | 1090 g |
| Dimensions | 115 × 115 × 33 mm |
| Dangerous goods | No |
You might also like
BPA000153023

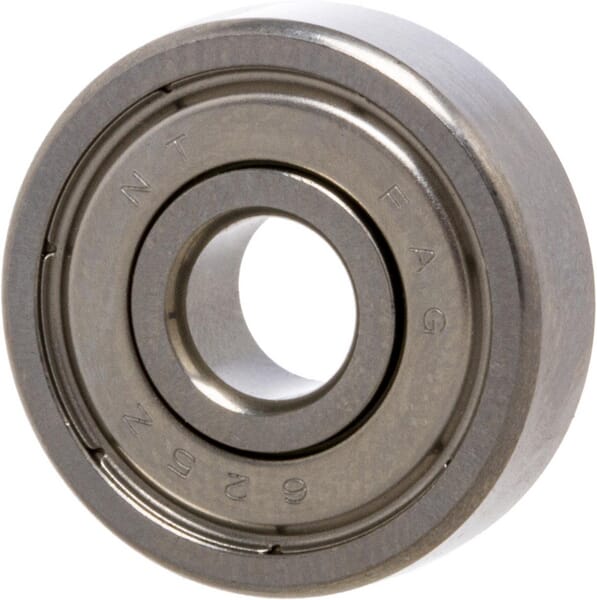

FAG Deep groove ball bearing 5x16x5mm INA/FAG 625ZZ
£2.96 excl.
£3.55 incl.
In stock
Expected to ship on Friday 18 September
BPA000150346
FAG Deep groove ball bearing 12x21x5mm INA/FAG 61801HZZ
£24.27 excl.
£29.12 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000136677
FAG Thrust ball bearing 51312
£121.66 excl.
£145.99 incl.
In stock
Expected to ship on Friday 18 September
BPA000150814

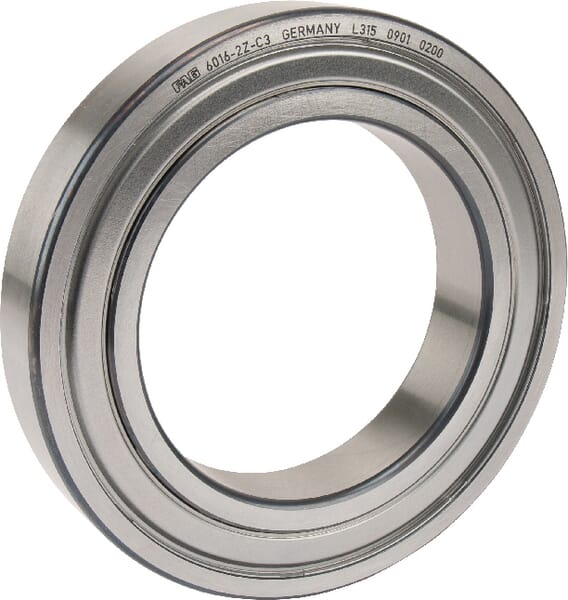

FAG Deep groove ball bearing 80x125x22mm INA/FAG 6016ZZC3
