£235.44
excl. VAT
£282.53 incl. VAT
£282.53
incl. VAT
£235.44 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 177000 N |
| Basic radial load static | 157000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 31 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 60 mm |
| DOutside diameter | 130 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 9600 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU312-E-XL-M1-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | C3 |
| Ref rotation speed | 5200 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 2.214 kg |
Logistics
| EAN | 4012801235136 |
|---|---|
| Unit of measure | EA |
| Weight | 2033 g |
| Dimensions | 135 × 140 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326437
FAG Cylindrical roller bearing 60x130x31mm INA/FAG NU312ETVP2
£135.69 excl.
£162.83 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000042043
FAG Self-aligning ball bearing 45x100x25mm INA/FAG 1309TVH
£61.25 excl.
£73.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000038505
FAG Self-aligning ball bearing 60x110x22mm INA/FAG 1212TVH
£61.72 excl.
£74.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000089837

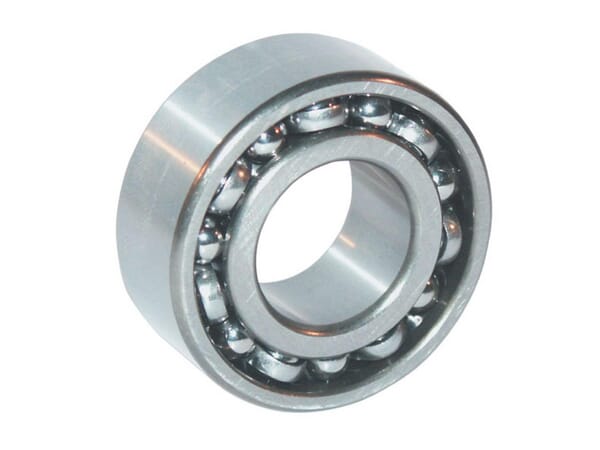

FAG Angular contact ball bearing 35x80x34.9mm INA/FAG 3307BDXLTVHC3
