£149.54
excl. VAT
£179.45 incl. VAT
£179.45
incl. VAT
£149.54 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

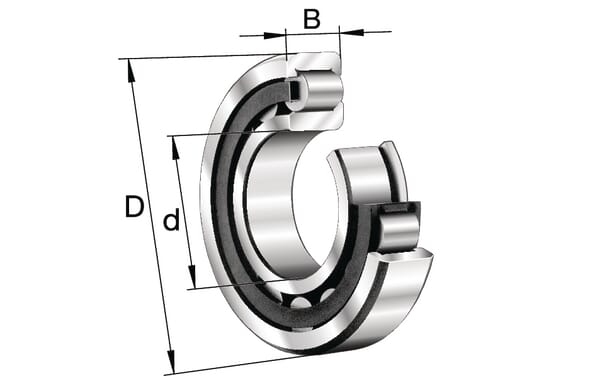

Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 177000 N |
| Basic radial load static | 182000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 31 mm |
| Consists of | Cylindrical bearing, Inner ring NJ |
| dInside diameter | 65 mm |
| DOutside diameter | 120 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 8100 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NJ2213-E-XL-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring with 1 rib, Shaft can be closed axially in 1 direction |
| Radial internal clearance code | CN |
| Ref rotation speed | 4100 r/min |
| Rows number | 1 |
| Unit | Each |
| Weight | 1.491 kg |
Logistics
| EAN | 4012801176873 |
|---|---|
| Unit of measure | EA |
| Weight | 1461 g |
| Dimensions | 125 × 125 × 34 mm |
| Dangerous goods | No |
You might also like
BPA000155355
FAG Deep groove ball bearing 25x52x15mm INA/FAG 6205HZZ
£40.78 excl.
£48.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000086507
FAG Tapered roller bearing 140x250x71.75mm INA/FAG 32228A
£1,232.86 excl.
£1,479.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150714
FAG Deep groove ball bearing 55x90x18mm INA/FAG 6011ZZ
£26.79 excl.
£32.15 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000325052
FAG Cylindrical roller bearing 50x90x23mm INA/FAG NJ2210ETVP2
£100.61 excl.
£120.73 incl.
In stock
Expected to ship on Monday 21 September
BPA000088816
FAG Angular contact ball bearing 30x62x23.8mm INA/FAG 3206BZZTVH
£54.51 excl.
£65.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000150225
FAG Deep groove ball bearing 35x62x14mm INA/FAG 6007ZZC3
£8.66 excl.
£10.39 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000197599
Kramp Grub screw DIN916 M12x12 stainless steel A2 9161212RVSP025
£0.25 excl.
£0.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000041089
Kramp Washer M7x14x1.6mm, Steel Zinc-plated DIN 125a 125A7
£0.02 excl.
£0.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000199507
Kramp Hexagon head bolt DIN931 UNF 1/2"x2" steel zinc-plated 8.8 931122UNF
£1.67 excl.
£2.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000199677
Kramp Hexagon head bolt DIN931 M14x75 steel zinc-plated 8.8 9311475
£0.71 excl.
£0.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000041041

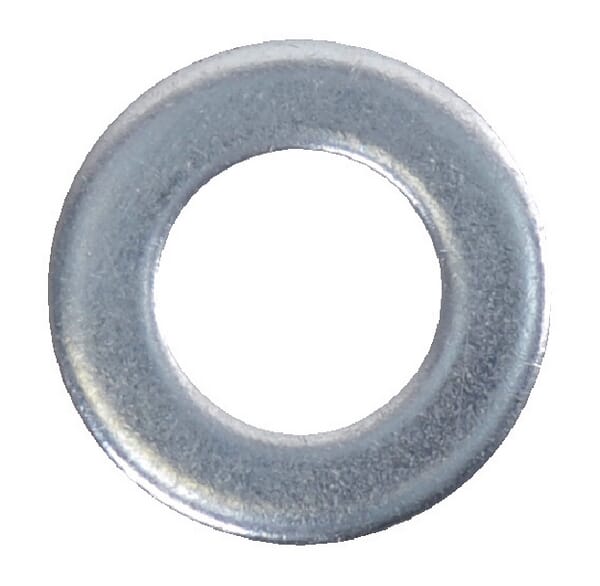

Kramp Washer M30x56x4mm, Steel Zinc-plated DIN 125a 125A30
