£198.91
excl. VAT
£238.69 incl. VAT
£238.69
incl. VAT
£198.91 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 242000 N |
| Basic radial load static | 222000 N |

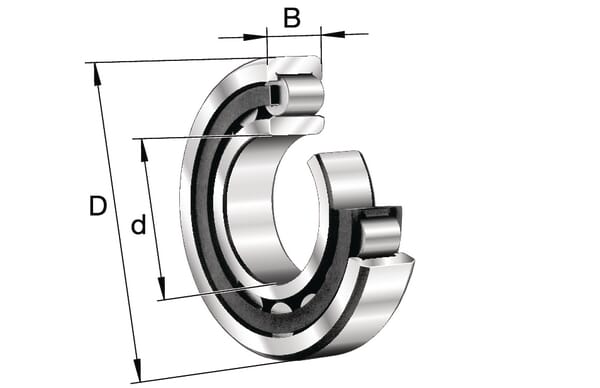

| Bearing model type | Cylindrical roller bearings |
| BWidth | 35 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 70 mm |
| DOutside diameter | 150 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 6300 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU314-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 4500 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4012801235235 |
|---|---|
| Unit of measure | EA |
| Weight | 2747 g |
| Dimensions | 155 × 157 × 43 mm |
| Dangerous goods | No |
