£238.22
excl. VAT
£285.86 incl. VAT
£285.86
incl. VAT
£238.22 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 285000 N |
| Basic radial load static | 265000 N |

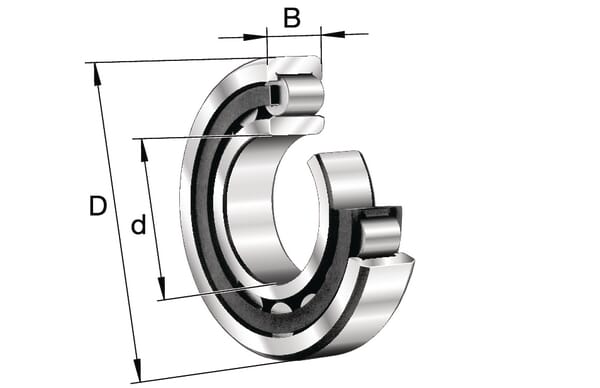

| Bearing model type | Cylindrical roller bearings |
| BWidth | 37 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 75 mm |
| DOutside diameter | 160 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5900 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU315-E-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 4000 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 3.244 kg |
Logistics
| EAN | 4012801023856 |
|---|---|
| Unit of measure | EA |
| Weight | 3295 g |
| Dimensions | 168 × 168 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000150789
FAG Deep groove ball bearing 75x115x20mm INA/FAG 6015
£30.59 excl.
£36.71 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067601
FAG Spherical roller bearing 60x130x31mm 21312E1XLKC3
£199.94 excl.
£239.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000072614
FAG Spherical roller bearing 90x160x40mm 22218E1XLC3
£240.82 excl.
£288.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000153051
FAG Deep groove ball bearing 6x19x6mm INA/FAG 626ZZ
£4.11 excl.
£4.93 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000112183

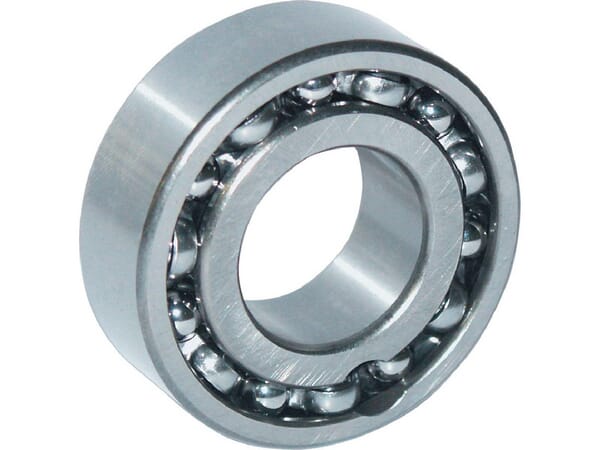

FAG Deep groove ball bearing 17x40x16mm INA/FAG 4203BBTVH
