Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 320000 N |
| Basic radial load static | 300000 N |

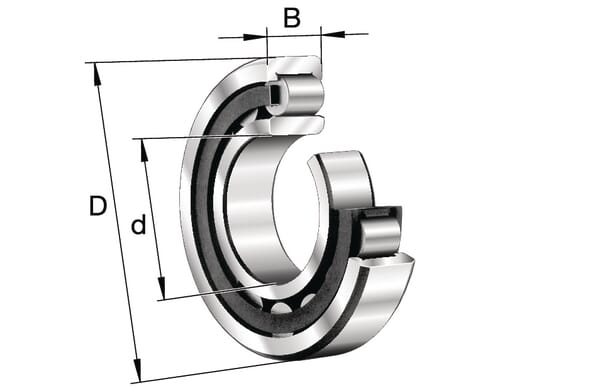

| Bearing model type | Cylindrical roller bearings |
| BWidth | 41 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 85 mm |
| DOutside diameter | 180 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5200 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU317-E-XL-TVP2 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | CN |
| Ref rotation speed | 3600 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
| Weight | 4.475 kg |
Logistics
| EAN | 4012801235334 |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000072489
FAG Spherical roller bearing 35x72x23mm INA/FAG 22207E1K
£112.14 excl.
£134.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000150797
FAG Deep groove ball bearing 75x115x20mm INA/FAG 6015C3
£55.30 excl.
£66.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000285448

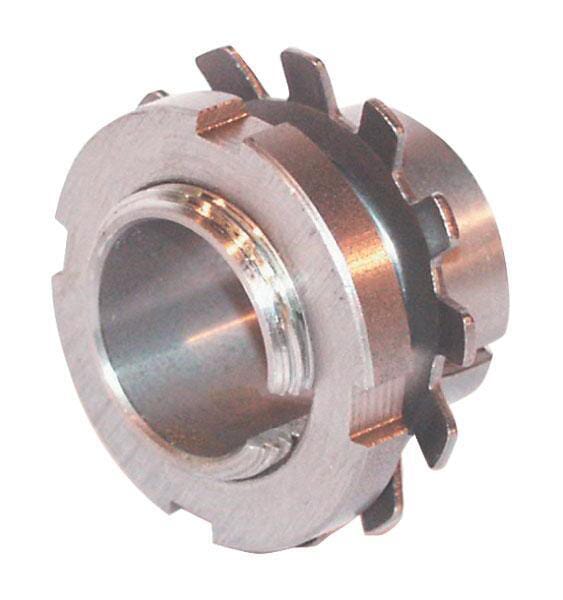

FAG Adaptor sleeve with nut 30x52x35mm H307
