£279.11
excl. VAT
£334.93 incl. VAT
£334.93
incl. VAT
£279.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Gearbox, Gearbox, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 260000 N |
| Basic radial load static | 265000 N |
| Bearing model type | Cylindrical roller bearings |
| BWidth | 32 mm |
| Consists of | Cylindrical bearing, Inner ring NU |
| dInside diameter | 95 mm |
| DOutside diameter | 170 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 5600 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | NU219-E-TVP2-C3 |
| Properties | Outer ring with 2 fixed ribs, Inner ring without rib, Axial displacement of shaft with regard to housing in 2 directions |
| Radial internal clearance code | C3 |
| Ref rotation speed | 3800 r/min |
| Rows number | 1 |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4012801395144 |
|---|---|
| Unit of measure | EA |
| Weight | 2841 g |
| Dimensions | 177 × 175 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000380620
FAG Housing unit UCF UCF205
£19.51 excl.
£23.41 incl.
In stock
Expected to ship on Friday 18 September
BPA000149532
FAG Deep groove ball bearing 20x42x12mm INA/FAG 6004C3
£4.55 excl.
£5.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152590

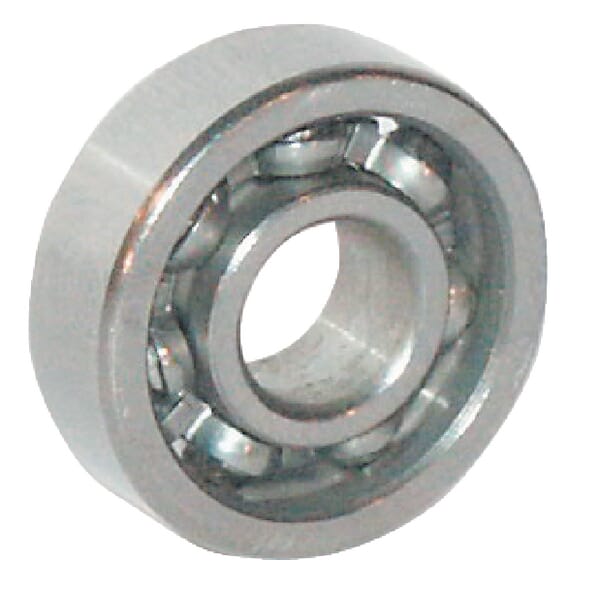

FAG Deep groove ball bearing 7x19x6mm INA/FAG 607
