£17.74
excl. VAT
£21.29 incl. VAT
£21.29
incl. VAT
£17.74 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

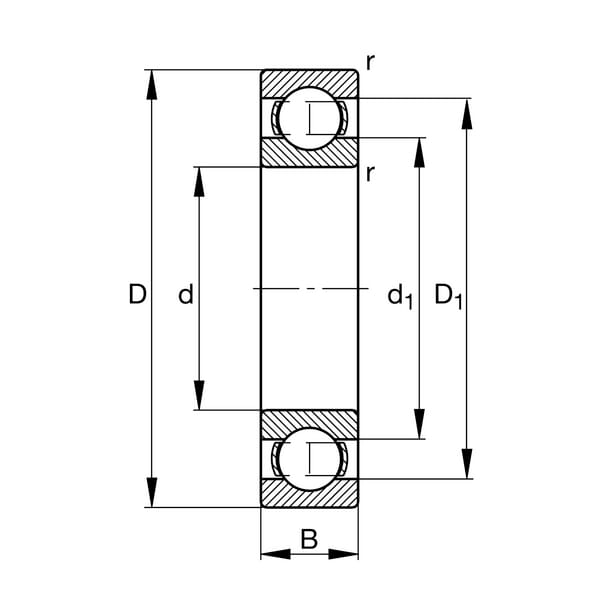

Product details
| Basic radial load dynamic | 5780 N |
|---|---|
| Basic radial load static | 2440 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| Inside diameter | 12 mm |
| Inside diameter of outer ring | 26.2 mm |
| Long description | Stainless steel bearings are manufactured from hardened, martensitic stainless steel with a high carbon content. This material combines excellent corrosion resistance with high strength. It also exhibits strong magnetic properties. |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Max rotation speed | 33500 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | S6201-HLC |
| Outside diameter | 32 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 22300 r/min |
| Sealing | Open |
| Unit | Each |
| Weight | 0.038 kg |
| Width | 10 mm |
Logistics
| EAN | 4012802228052 |
|---|---|
| Unit of measure | EA |
| Weight | 37 g |
| Dimensions | 45 × 45 × 13 mm |
| Dangerous goods | No |
You might also like
BPA000353291
FAG Deep groove ball bearing 12x32x10mm INA/FAG S6201ZZ
£19.86 excl.
£23.83 incl.
In stock
Expected to ship on Friday 18 September
BPA000353289
FAG Deep groove ball bearing 12x32x10mm INA/FAG S62012RS
£18.77 excl.
£22.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000380742
FAG Housing unit UCP UCP204
£18.70 excl.
£22.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000158056
FAG Deep groove ball bearing 4x9x4mm INA/FAG 684HZZ
£5.45 excl.
£6.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000136122
FAG Thrust ball bearing 51206
£26.10 excl.
£31.32 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000093150

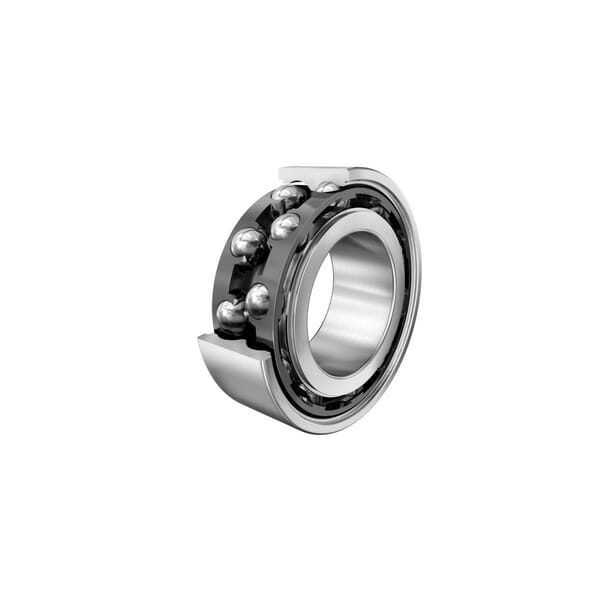

FAG Angular contact ball bearing 3316BDXL
