£48.00
excl. VAT
£57.60 incl. VAT
£57.60
incl. VAT
£48.00 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Basic radial load dynamic | 33320 N |
|---|---|
| Basic radial load static | 19150 N |
| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |

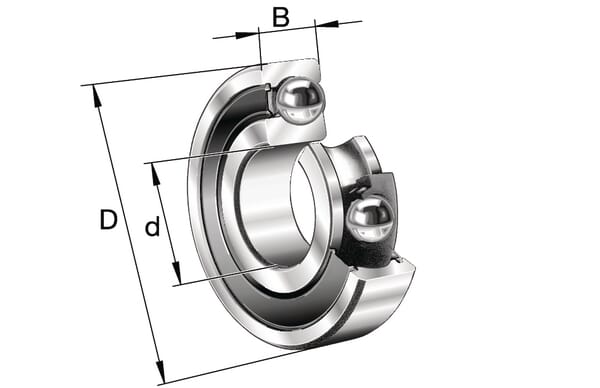

| BWidth | 31 mm |
| Content in sale unit | 1 pcs |
| dInside diameter | 35 mm |
| DOutside diameter | 80 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 66.9 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 5300 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 62307-A-2RSR |
| Outside diameter of inner ring | 46.2 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 5600 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | 2RS |
| Unit | Each |
| Weight | 0.065 kg |
Logistics
| EAN | 4012802647969 |
|---|---|
| Unit of measure | EA |
| Weight | 672 g |
| Dimensions | 86 × 84 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000131547
FAG Thrust ball bearing 51110
£26.21 excl.
£31.45 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000150788
FAG Deep groove ball bearing 70x110x20mm INA/FAG 6014ZZC3
£53.29 excl.
£63.95 incl.
In stock
Expected to ship on Tuesday 22 September

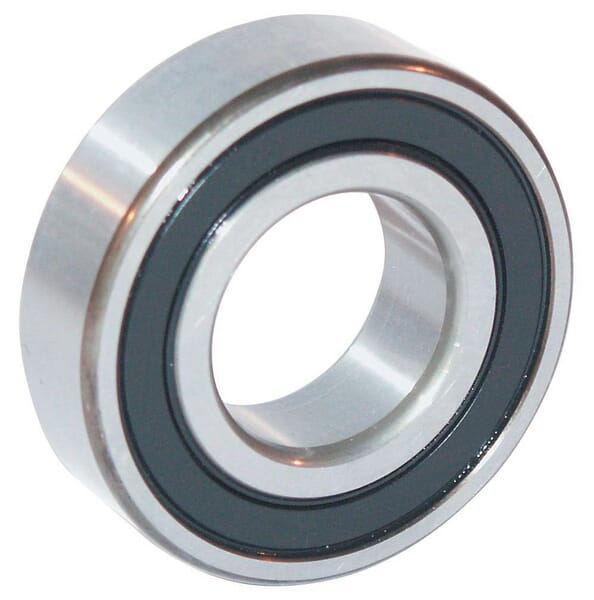

BPA000150098
