£38.26
excl. VAT
£45.91 incl. VAT
£45.91
incl. VAT
£38.26 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 56000 N |
|---|---|
| Basic radial load static | 31500 N |

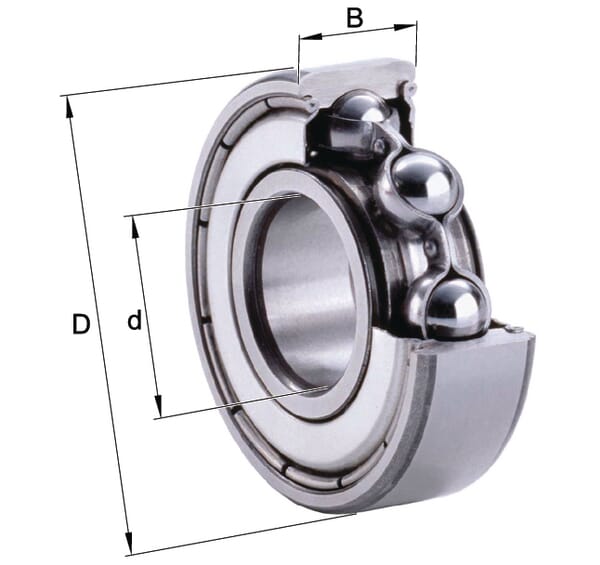

| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| BWidth | 25 mm |
| dInside diameter | 45 mm |
| DOutside diameter | 100 mm |
| Inner ring shape | Cylindrical |
| Inside diameter of outer ring | 83.6 mm |
| Manufacturer | Schaeffler |
| Material | Steel |
| Max rotation speed | 10500 r/min |
| Max working temperature | 150 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 6309-C-Z-C3 |
| Outside diameter of inner ring | 60.33 mm |
| Radial internal clearance code | C3 |
| Ref rotation speed | 9100 r/min |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | Z |
| Unit | Each |
Logistics
| EAN | 4054369805208 |
|---|---|
| Unit of measure | EA |
| Weight | 842 g |
| Dimensions | 105 × 105 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000153710
FAG Deep groove ball bearing 45x100x25mm INA/FAG 6309C3
£21.11 excl.
£25.33 incl.
In stock
Expected to ship on Friday 18 September
BPA000153713
FAG Deep groove ball bearing 45x100x25mm INA/FAG 6309TBP6C3
£87.40 excl.
£104.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067606
FAG Spherical roller bearing 60x130x31mm INA/FAG 21312K
£225.27 excl.
£270.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000071119
FAG Self-aligning ball bearing 2320MC3FAG
£1,739.29 excl.
£2,087.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000089763

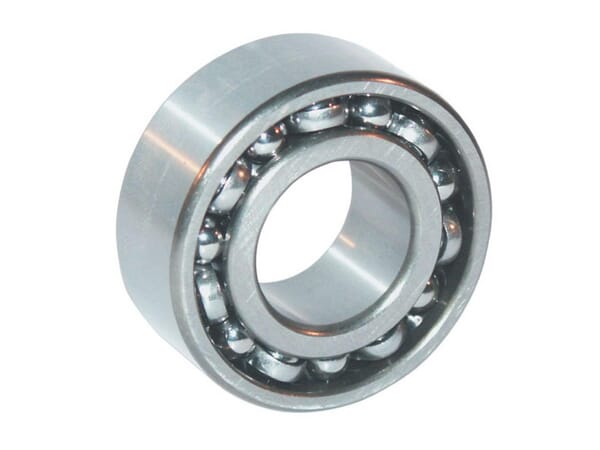

FAG Angular contact ball bearing 25x62x25.4mm INA/FAG 3305BTVH
